Tony Electric Hard Wood Chipper Machine Wood Crusher Tpq218

Product Description

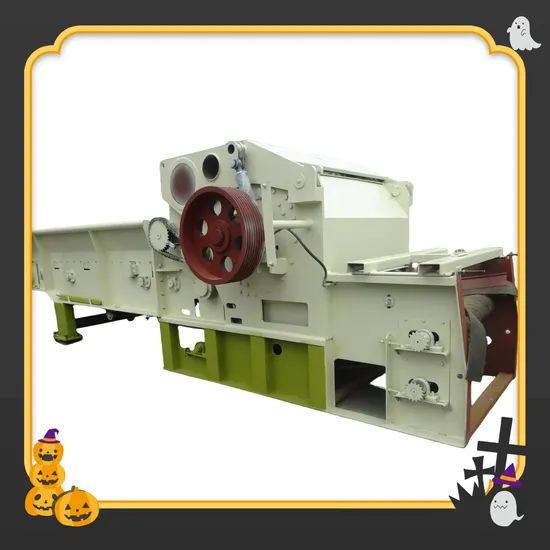

TONY electric hard wood chipper machine wood crusher TPQ218

Product Description
Introduction of wood chipper :
Drum chipper is the production of wood products and special equipment, this product is widely used in particle board plants, medium and high density fiberboard plant, stubble plants, biomass power plant, wood chips and other industrial and manufacturing plant manufacturer preparation in section before the device of choice.
The product structure is advanced, cutting film material of high quality, wide adaptability of raw materials, easy operation and maintenance. Cutting the main raw material is small diameter wood, timber harvesting, processing residues (such as sugar cane, reed, bamboo etc).
Detailed Photos
Structure of wood chipper :
Machine includes the body, the knife roller, the upper and lower feed rollers, the conveyor belt, hydraulic system components.
Product Parameters
Technical parameter of wood chipper :

Model	TPQ-216	TPQ-218	TPQ-2113
Inlet (mm)	240*540	310*700	400*700
Blade	2	2	2
Rotate Speed	650	800	1300
Max Diameter (mm)	230	300	450
Chip size (mm)	25-35	25-35	25-35
Capacity (Ton)	7-8	8-15	15-30
Main Motor Power (kw)	55	110	200-250
Feed Roller Motor (kw)	3*1,4*1	4*1,5.5*1	7.5*2
Oil pump Motor (kw)	1.5*1	1.5*1	3*1
Weight (kg)	4070	7000	11840
Size (mm)	1800*1900*1210	2200*2150*1500	3670*2517*2050
Conveyor motor power (kw)	3	3	3

Our Advantages
Advantages of wood chipper :
Raw Materials to finished products:
The raw material include wood log, wood branches, wood block, wood board, branch material, plate skin, waste veneer, wooden waste, bamboo, cotton straw and other wood fiber rods, and it can cut these materials in different wood chipper size.
With advanced structure and special blades layout, the drum wood chipper is technically suitable for undersized logs processing.
In fact, the drum wood chipper can process a variety of materials. The common raw materials for the drum wood chipper are undersized wood logs, wood branches, wood barks, waste board.
Application: Widely used in wood chips making factory, biomass power plant, industrial boiler factory, wood shavings plant, high-density fiber planmts. Sawdust Chipper:

Installation Instructions
Clients on Site:
Company Profile
Our Company:
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
Certifications
Certifications:
Clients with us: After Sales Service
Best Service:
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.

---
