Plastic EPE Foam Net Extruder Machine/Fruit Net Machine

US$18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

CW-75 FOAM

Type

Pipe Extruder

Plastic Processed

EPE

Product Type

Extrusion Molding Machine

Feeding Mode

One Feed

Assembly Structure

Integral Type Extruder

Screw

Single-Screw

Automation

Automatic

Computerized

Model

Cw-75 Foam Netting Machine

Application of Resin

LDPE

Production Network Cover Diameter Range

20mm-150mm

Speed

10-60m/Min

Total Power

About 50kw

Cooling Water

80L/H

Extruder Ability

About 17-22kg/Hr

Weight

4 Tons

Equipment Size

12*3*1.8m

Specification

12*3*1.8/m

Trademark

Chinaworld

Origin

China

Product Description

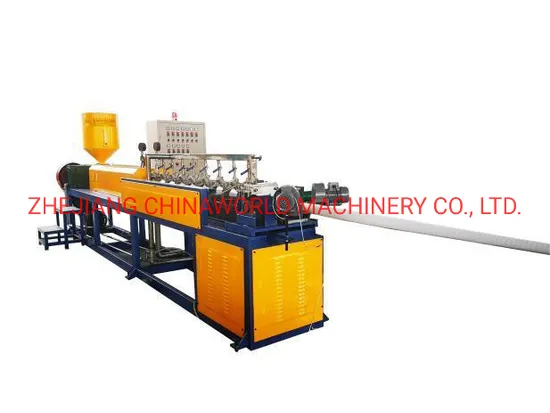

EPE 75 Foam Net Production Line
Product Description
EPE foam net is a new kind of flexible packaging materials, because of its unique expandable mesh structure and flexible foam omentum, widely should be in glass products, precision instrument and various kinds of fruit, and other products packaging.

Product Parameters

Application of resin	LDPE	Extruder ability	about 17-22KG/HR
cover diameter range	20mm-150mm	production line speed	10-60m/min
total power	50KW	supply specifications	Three phase four wire 380V, 50Hz
Main motor	11KW	The cooling water	80L/h
Weight	4 tons	equipment size	1231.8m

Detailed Photos
