Small Station Portable Concrete Mixing Plant Js750 Yhzs35 Mobile Concrete Batching Plant

Product Description

Small Station Portable Concrete Mixing Plant Js750 Yhzs35 Mobile Concrete Batching Plant Product Description

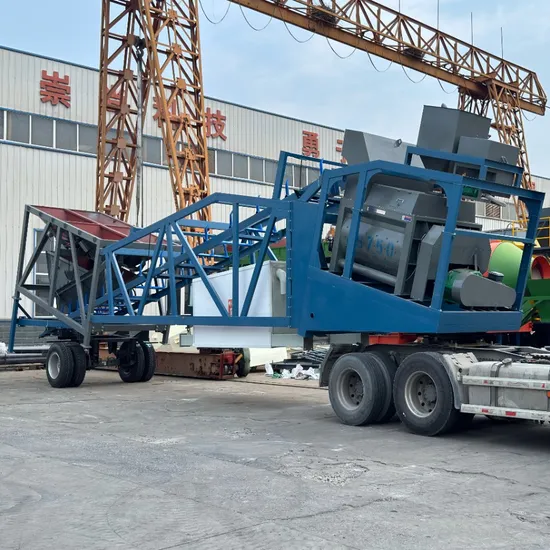

The mobile concrete mixing plant is a trailerable and mobile mixing equipment that integrates aggregate, weighing, mixing, transportation and other operations into one centralized trailer unit. It is suitable for mobile construction of projects such as roads and bridges that require a relatively small amount of concrete.
The mobile concrete mixing station is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, unloading and fully automatic control systems of the concrete mixing station into a trailer unit; it has all the same action processes, operating methods, and maintenance as the fixed fully automatic mixing station; it also has unique features such as flexible movement, quick and easy disassembly and assembly, and simple storage and management; it is the best model for mobile construction of highways, railways, bridges, ports, hydropower and other projects.
The mobile concrete batching plant is all mounted on a semi-trailer and, except for the cement silo and screw conveyor, all air and water pipes are prefabricated and pre-wired with quick connectors for power.
YHZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
At present, mobile concrete mixing plants are mainly divided into two types: traction type and trailer type. The chassis of the traction type contains complete front and rear axles; the chassis of the trailer type only has the rear axle, and the front end is placed on the saddle bridge of the tractor.
1. Quick disassembly and assembly, easy to move
When transitioning: Except for the screw conveyor and cement silo, the entire mixing station can be towed and moved by lowering the front end; other items such as the walking platform and elevated panels can be folded down, and all control cables do not need to be disassembled. The removed accessories can be taken away with the station.
The mobile mixing plant is equipped with tires, traction pins, driving signal devices, and brake systems. The maximum speed allowed when towed by a trailer can reach 50 kilometers per hour.
During installation: The ground must be flat and hardened; disassembly and assembly require the cooperation of a 30-ton crane.
During storage: If the equipment is not in use temporarily, keep it in the same transportation condition as it was during transportation.
2. Other performance, operation methods and principles are the same as the fixed standard mixing station (see HZS concrete mixing station)
3. The outer dimensions of the transportation units of all components of the mobile mixing station are smaller than the internal dimensions of the container. Three 40-foot containers are required for the entire station to be transported.
Structural composition
1. Host chassis: A cantilever-shaped mixing host chassis, which contains a trailer truck traction pin and parking legs; the mixer, cement and water admixture measuring scales are placed on the chassis; inspection platforms, railings, etc. are attached around the chassis.
2. Control room: The control room is at the bottom of the main machine chassis and is equipped with a fully automatic control system for the mixing station. The control system is the same as the fixed mixing station. The control room serves as the front support point of the entire station during working conditions. During transportation, the control room is stowed away in the space of the bracket; all its control lines do not need to be disassembled.
3. Aggregate batching measurement: This system is located at the back end of the entire station. The upper part is the aggregate (sand, stone) storage hopper. The storage hopper can be divided into 2 or 4 compartments, and is equipped with a heightening plate to increase the storage capacity. Pneumatic door opening operations are performed in sequence. Aggregate measurement is a cumulative measurement method for multiple materials. The bottom is equipped with a walking rear axle and a frame leg during operation.
4. Belt conveyor frame: This frame is a truss structure connecting the main machine chassis and the aggregate batching frame, with a built-in belt frame; the main frame, belt frame, and batching frame are integrated to form the main structure of the entire mobile mixing station
5. Peripheral components: They are the cement silo and screw conveyor. The peripheral components are integral components during work or transportation. They do not need to be disassembled and can be transported and disassembled as a whole.
6. Mixing host: Generally, a JS type forced mixer is used, which can quickly and evenly mix fluid and dry concrete.

Detailed Photos
Ready mixed Concrete Batching Plants consists
*Aggregate weighing system
*conveying system,
*cement weighing system
*Water weighing system,
*Additive weighing system
*Mixer system,
*Dust removal system
*Pneumatic system,
*Computer control system
*Cement silo.
The modular design to make quickly installation and relocation; the fully automatic control system to make easily
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise

Product Parameters

Model		YHZS25	YHZS35	YHZS50	YHZS60
Productivity (m3/h)		25	35	50	60
Discharger Capacity (L)		500	750	1000	1000
Discharger Height(m)		3.8	3.8	3.8	3.8
Mixed Aggregate		5x3	5x3	7x4	7x4
(m3*qty)
Aggregate	Measure	0-1500	0-2300	0-3000	0-3000
Balance	Range(kg)
	Measure	±2%	±2%	±2%	±2%
	Precision
Powder	Measure	0-400	0-600	0-800	0-800
Balance	Range(kg)
	Measure	±1%	±1%	±1%	±1%
	Precision
Water	Measure	0-200	0-300	0-400	0-400
Balance	Range(kg)
	Measure	±1%	±1%	±1%	±1%
	Precision
Additive	Measure	0-13	0-18	0-25	0-25
Balance	Range(kg)
	Measure	±1%	±1%	±1%	±1%
	Precision

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

NO.	Foundation-free 750# Concrete Batching Plant Main Components
1	CONCRETE MIXING SYSTEM
2	AGGREGATE BATCHING MACHINE
3	INCLINED BELT CONVEYOR
4	AGGREGATE PRO-STORAGE BIN
5	CEMENT MEASURING SYSTEM
6	WATER MEASURING SYSTEM
7	PNEUMATIC SYSTEM
8	FULL AUTOMATIC CONTROL SYSTEM
9	BOLTED CEMENT SILO (OPTIONAL)
10	SCREW CONVEYOR (OPTIONAL)
Item No.	Item Name		Models and Specifications	QTY
1	Mixer	Double-horizontal forced stirring host	JS750	1set
		gearbox		1set
		motor	30KW	1set
		Air unloading	100X250	2pcs
		Electric lubricating system	380V/1KW	1set
		High Strength Liner	160#	1set
		Host frame structure	180# National standard channel steel	1set

Model No.		JS500	JS750	JS1000	JS1500	JS2000
Output capacity		500L	750L	1000L	1500L	2000L
Input capacity		800L	1200L	1600L	2400L	3200L
Productivity		≥25m3/h	≥35m3/h	≥50m3/h	≥75m3/h	≥100m3/h
Aggregate Maximum Particle Size (Pebble/Gravel)		80/60	80/60	80/60	80/60	80/60
Stirring blade	Rotating speed	35r/m	31r/m	25.5r/m	25.5r/m	23r/m
	Quantity	2×7	2×7	2×7	2×8	2×8
Stirring motor	Model No.	Y180M-4	Y200L-4	Y225S-4	Y225M-4	Y280S-4
	Power	18.5KW	30KW	18.5KW*2	30KW*2	37KW*2
Hoist motor	Model No.	YEZ132S-4-B5	YEZ132M-4-B5	YEZ160S-4	YEZ180L-4	YEJ180L-4
	Power	5.5KW	7.5KW	11KW	18.5KW	22KW
Water pump	Model No.	50DWB20-8A	65DWB35-5	KQW6	KQW65	CK65/20L
	Power	750W	1.1KW	3KW	3KW	4KW
Hopper lifting speed		18m/min	18m/min	21.9m/min	23m/min	26.8m/min
Dimensions (length x width x height)	Shipping status	3050×2300×2680mm	3650×2600×2890mm	4640×2250×2250mm	5058×2250×2440mm	5860×2250×2735mm
Total Weight		4000kg	5500kg	8700kg	11130kg	15000kg

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi. The company has developed rapidly in recent years, and the new plant was completed and put into production in May 2023, with a total area of 20,000 square meters. We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications


Our Advantages
Ningdu Xingye Machinery Manufacturing Co., Ltd. was established in July 2013 and is located in Xinzhongsheng Industrial Park, Ningdu County, Ganzhou City, Jiangxi Province. It is a national-level specialized new technology enterprise integrating machinery manufacturing, R&D design, trade logistics and overseas sales. It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels. The company has successively held more than 20 national invention patents and independent intellectual property rights, and has a leading industry position and innovation capabilities.
We adhere to the business philosophy of "taking technological innovation as the core, product quality as the cornerstone, and customer satisfaction as the purpose", constantly explore, strengthen research and development, actively expand service areas and customer needs, and create unlimited possibilities for the company's development. The products have won wide recognition in the market for their excellent performance and reliability.
For more than 10 years since its establishment, the company has been working hard in the field of machinery manufacturing and sales. The products have been exported to more than ten countries and regions around the world, and have established long-term and stable cooperative relations with well-known companies in the United States, Singapore, Malaysia, Indonesia and other countries, and established a good brand image and market reputation.
While the company continues to grow, it actively fulfills its social responsibilities and is committed to energy conservation, emission reduction and sustainable development. The company strictly abides by national and local environmental protection laws and regulations, and continues to contribute to environmental protection and sustainable development. At the same time, we are also actively involved in various public welfare undertakings, and contribute to public welfare undertakings in the fields of society, community, environmental protection, and humanities.
The company currently has more than 100 employees. We insist on being people-oriented and attach importance to the growth and development of employees. The company has successively equipped employee dormitories, canteens, living and leisure areas, sports and fitness areas and other living facilities to provide employees with a good working environment; and customized a complete training and promotion mechanism for the entire process of the 2+3 model to enhance employees' sense of belonging, sense of accomplishment and happiness.
Looking to the future, we will continue to deepen our efforts in the fields of machinery manufacturing, R&D design, trade logistics, overseas sales, etc., increase R&D investment, and promote technological innovation and product upgrades. We will actively expand domestic and foreign markets, explore customer needs through precise market positioning and marketing strategies, and establish and enhance brand awareness at home and abroad. In the future competition, we will continue to lead the industry with outstanding technical strength and product quality.

FAQ

1. Are you a manufacturer, trading company or a third party?
We are a manufacturer 15 years experience.It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels.
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
