US$20,000.00-45,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Product Type
Pipe Extrusion
Assembly Structure
Integral Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Pipe Diameter
From 16mm-250mm
Pipe Usage
Water, Engergy, Gas, Irrigation, etc.
Advantages
Long Life/High Efficiency/High Capacity
Extruder Control
by Siemens PLC Screen Touch
Electrical Components
Siemens, ABB, Omron, FUJI, etc.
Production Speed
Around 5-35meter/Minute
Delivery Time
Around 40 Days
Machine Installation
Available
Motor Drive/Inverter
Siemens/ABB Brand
Certification
CE, ISO9001:2008, SGS
Transport Package
Plastic Film and Wooden Pallet
Production Capacity
30 Sets/Per Month
Product Description
Introduction
PPR PP pipe production line of YILI Machinery can achieve full automatic control from material feeding till pipe collection, with high speed and excellent performance. It can be used to make PPR pipes, PERT pipes, PP pipes, which are mainly used in indoor floor heating system and indoor hot water supply system. The whole production line is controlled by PLC integrated control system, easy operation with automatic fault alarm system. The pipes ranges from 16mm to 250mm with thickness up to 30mm.
Technical Specification
| 33D Series Classical Production Line: |
| Model | OD (mm) | Extruder | Max. Output (kg/hr) | Max.Haul-off speed (m/min) |
| PPR63 | Φ20-63 | SJ65/33 | 150 | 10 |
| PPR110 | Φ20-110 | SJ65/33 | 180 | 12 |
| PPR160 | Φ50-160 | SJ75/33 | 300 | 8 |
| PPR250 | Φ63-250 | SJ75/33 | 330 | 6 |
| |
| 38D Series High Efficient Production Line: |
| Model | OD (mm) | Extruder | Max. Output (kg/hr) | Max.Haul-off speed (m/min) |
| HPPR63 Single | Φ20-63 | HSJ60/38 | 280 | 20 |
| HPPR63 Dual | Φ20-63 | HSJ60/38 | 360 | 18*2 |
| HPPR110 Single | Φ20-110 | HSJ60/38 | 280 | 20 |
| HPPR110 Dual | Φ20-110 | HSJ75/38 | 450 | 18*2 |
| HPEG160 | Φ50-160 | HSJ60/38 | 360 | 12 |
| HPEG250 | Φ75-250 | HSJ75/38 | 450 | 10 |
Tech Features & Advantages
High performance extruder with special screw structure, good plasticization and low energy consumption; Extrusion head with spiral structure, make sure the melt inside distributed evenly to achieve best plasticization; Calibrator design with water ring which is easy to clean, and to achieve best cooling and fastest forming; Advanced pipe line layout design and adjustable spray angle for better cooling effect; Various kinds of haul-off unit meets requirements for different pipe size and different speed requirement; No-dust cutter serves with Servo drive, which ensure accurate cutting of pipes.
Technology Process -Extruder and Die set-

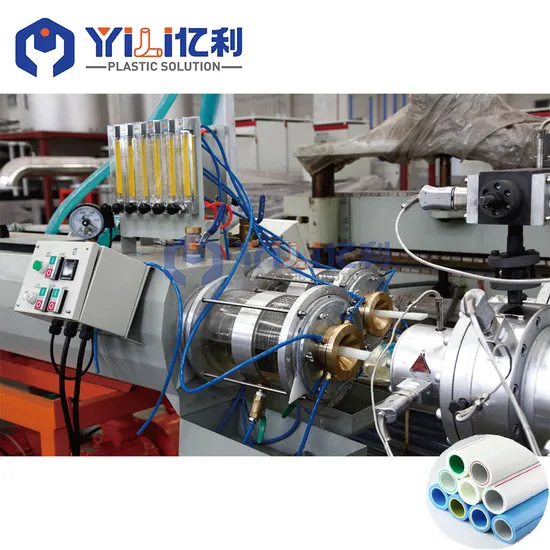

-Calibrator specially designed for PPR pipes-
- Vacuum & Cooling tank-
-Haul-off & Cutter-
>>
