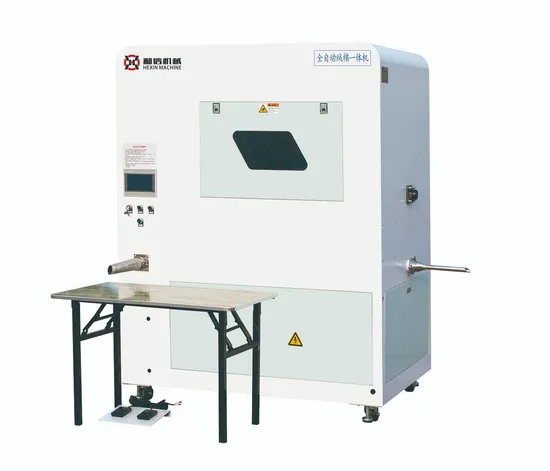

Single Nozzle Two Weighing Scales Fully Automatic Fiber Cotton Filling Machine

US$500.00-50,000.00 1 set (MOQ)

Basic Info.

Model NO.
M1-2
Feature
Automatic Weighing
Filling Valve Head
Doubie-Head
Certification
CE
Condition
New
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Power Supply
Pneumatic
After-Sales Service
Technical Engineer Support
Warranty
1 Year
Applicable Material
Cotton
Single Error
Within 1g
Weighing Nozzle
32mm, 45mm
Flow Nozzle
25mm
Filling Type
Whole Piece Filling
Single Weighing Range
3-200g
Dimension
1500*1000*1900mm
Cycle Number
2
Accuracy
0.1g
Machine Weight
330kg
Filling Ports
2
Transport Package
Wooden Box
Trademark
Hexin
Origin
China
HS Code
8453800000
Production Capacity
100 Sets/Month

Product Description


Single Head Two Scales Automatic Cotton Filling Machine( down can be also filled)
Model
M1-2
Single Error Within 1g

Filling nozzle size(mm)		 Weighing nozzle( 32, 45) Flow nozzle( 25mm )
Daily workload 3000-5000 times
Filling type Whole piece filling
Single weighing range 3-200g
Filling material Silk cotton, ball cotton, down, wool, crushed velvet
Dimension 1500*1000*1900mm
Installation Size 2500*2000mm
Cycle number 2
Display Accuracy 0.1g
Machine weight 330kg
Power 380V/3KW(220Vcan be customized)
Filling ports 2(1weighing nozzle+1flow nozzle)
Packaging & Shipping
FAQ Q: Are you a trading company or manufacturer ? A1: Tangshan Hexin Garment Machinery Co., Ltd. is a professional manufacturer with many years'experience.Q: What's your payment terms?
A2: We accept T/T, L/C
Q: What's the delivery time?
A3: 3~10 days.
Q: Which payment period is accepted? A4: 30% advance payment paid by T/T before fabrication and 70% balance payment paid by LC or TT before delivery. Electrical parts
Name Brand and Origin
PLC Delta/Xinje
Sensor HBM(Germany)
Regulated power supply MW(Taiwan)
Controller Delixi
Pneumatic parts AirTAC
Pressure Regulating Valve Japan SMC/AirTAC
Touch Screen MCGS
