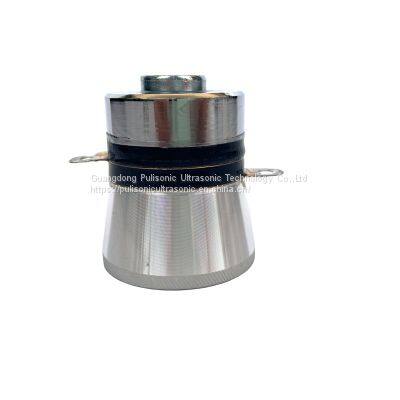

Pzt4 Ultrasonic Cleaner Bath Vibartor 40K 60W Piezoelectric Transducer For Dishwasher
Introduction to Ultrasonic Transducers:
Ultrasonic vibrator, also called ultrasonic vibrating head, is a kind of ultrasonic transducer and the core component of ultrasonic cleaning machine. We call the whole connected ultrasonic transducer and horn the vibrator. Ultrasonic transducer is one of the important components in the ultrasonic cleaning machine and ultrasonic vibration plate, which largely determines the quality of the ultrasonic effect.
The ultrasonic vibrator produced by the company is a piezoelectric ceramic conversion device, which converts a high-frequency sinusoidal voltage signal into a high-frequency mechanical vibration signal. The vibration signal of the vibrator is converted into a cavitation effect, and the attachment of the object is quickly peeled off to achieve the purpose of cleaning.
The ultrasonic vibrators produced by the company are characterized by low heat generation, good thermal stability, low resonance impedance, good consistency between frequency and static capacitance, and complete and smooth waveforms of frequency and impedance.
Ultrasonic vibrators have multiple resonance points. Using the second and third resonance points of the vibrator, we have developed dual-frequency ultrasonic vibrators and three-frequency ultrasonic vibrators, which are effective in ultrasonic cleaning machines. The company can customize them according to your needs. Various types of ultrasonic vibrators can achieve a higher level of cleaning effect.
Our company's annual spot supply frequency: 17KHZ/20KHZ/22KHZ/25KHZ/28KHZ/33KHZ/40KHZ/53KHZ/60KHZ/80KHZ/100KHZ/120KHZ/200KHZ cleaning transducer.
Reference for frequency selection: low-frequency ultrasound (17-50KHZ) is suitable for most occasions or where the bonding strength of the dirt and the surface of the cleaning part is high, and high-frequency ultrasound (50-200KHZ) is suitable for the cleaning of precision parts. In order to achieve a more ideal effect, low frequency and high frequency ultrasound can be selected at the same time.
Widely used in the electronics industry, machinery industry, automobiles, electroplating, chemical fiber,
Optical, bearing and other industries. For example, cleaning magnetic cores, oil nozzles, auto parts, electroplating hardware tools, chemical fiber spinnerets, optical lenses, bearings, tools, tableware, medical equipment, precision hardware, watch parts, gold and silver jewelry, electronic components. The frequency vibration is strong and the density is uniform. It can quickly achieve the purpose of degreasing, sodium removal, decontamination, and descaling. In addition, it can also be used in chemical experiments to achieve catalysis, stirring, and rapid generator chemical reactions, etc. Wait
| Specification List |
| Model | Frequency
（KHz） | Capacitance
（pF） | Resonance
Impedance
（Ω） | Size
Radiation
head*Height
(mm) | Power
（W） | Insulation
resistance
(2500VDC) |
| PLS-8QXHNQ-2540 | 40±0.8 | 3100±10% | ≤30Ω | 25*58 | 20w | ≥100MΩ |
| PLS-8QXHNQ-3045 | 46±1.0 | 2400±10% | ≤25Ω | 45*43 | 35w | ≥100MΩ |
| PLS-8QXHNQ-3517 | 17±1.0 | 2550±10% | ≤28Ω | 78*93 | 50w | ≥100MΩ |
| PLS-8QXHNQ-3820 | 20±0.8 | 3800±10% | ≤28Ω | 59*99 | 60w | ≥100MΩ |
| PLS-8QXHNQ-3823 | 23±0.8 | 3800±10% | ≤28Ω | 59*84 | 60w | ≥100MΩ |
| PLS-8QXHNQ-3825* | 25±0.8 | 3800±10% | ≤20Ω | 59*80 | 60w | ≥100MΩ |
| PLS-8QXHNQ-3828* | 28±0.5 | 3800±10% | ≤20Ω | 59*68 | 60w | ≥100MΩ |
| PLS-8QXHNQ-3833* | 33±0.5 | 3800±10% | ≤20Ω | 48*61 | 60w | ≥100MΩ |
| PLS-8QXHNQ-3840* | 40±0.5 | 3800±10% | ≤20Ω | 48*51 | 60w | ≥100MΩ |
| PLS-8QXHNQ-4520* | 21.5±0.8 | 5600±10% | ≤20Ω | 67*92 | 100w | ≥100MΩ |
| PLS-8QXHNQ-4528* | 28±0.5 | 5600±10% | ≤20Ω | 67*68 | 100w | ≥100MΩ |
| PLS-8QXHNQ-5028 | 28±0.5 | 7200±10% | ≤20Ω | 67*68 | 120w | ≥100MΩ |
| PLS-8QXHNQ-5020 | 20±0.5 | 4650±10% | ≤25Ω | 79*94 | 120w | ≥100MΩ |
| PLS-4QXHNQ-2540 | 40±0.8 | 2400±10% | ≤30Ω | 25*58 | 20w | ≥100MΩ |
| PLS-4QXHNQ-2540 | 40±0.8 | 2400±10% | ≤30Ω | 30*50 | 20w | ≥100MΩ |
| PLS-4QXHNQ-2560 | 60±1.5 | 2300±10% | ≤35Ω | 30*35 | 20w | ≥100MΩ |
| PLS-4QXHNQ-2565 | 65±1.5 | 2300±10% | ≤35Ω | 25*31 | 20w | ≥100MΩ |
| PLS-4QXHNQ-3055 | 55±1.0 | 3100±10% | ≤35Ω | 30*45 | 35w | ≥100MΩ |
| PLS-4QXHNQ-3050 | 52±2.0 | 3100±10% | ≤35Ω | 38*40 | 35w | ≥100MΩ |
| PLS-4QXHNQ-3528* | 28 ±0.5 | 4000±10% | ≤20Ω | 45*79 | 50w | ≥100MΩ |
| PLS-4QXHNQ-3540* | 40 ±1.0 | 4000±10% | ≤20Ω | 45*55 | 50w | ≥100MΩ |
| PLS-4QXHNQ-3825* | 25±0.8 | 4800±10% | ≤20Ω | 59*80 | 60w | ≥100MΩ |
| PLS-4QXHNQ-3828* | 28±0.5 | 4800±10% | ≤20Ω | 59*68 | 60w | ≥100MΩ |
| PLS-4QXHNQ-3833 | 33±0.5 | 4800±10% | ≤20Ω | 48*62 | 60w | ≥100MΩ |
| PLS-4QXHNQ-3835 | 35±0.5 | 4800±10% | ≤20Ω | 45*55 | 60w | ≥100MΩ |
| PLS-4QXHNQ-3840* | 40±0.5 | 4800±10% | ≤20Ω | 48*51 | 60w | ≥100MΩ |
| PLS-4QXHNQ-4520 | 22±0.5 | 7600±10% | ≤20Ω | 67*92 | 100w | ≥100MΩ |
| PLS-4QXHNQ-4525 | 25±0.5 | 7600±10% | ≤20Ω | 67*76 | 100w | ≥100MΩ |
| PLS-4QXHNQ-4528* | 28±0.5 | 7600±10% | ≤20Ω | 67*68 | 100w | ≥100MΩ |
| PLS-4QXHNQ-4540* | 40±0.5 | 7600±10% | ≤20Ω | 55*53 | 100w | ≥100MΩ |
| PLS-4QXHNQ-5028 | 28±0.5 | 9600±10% | ≤20Ω | 67*68 | 120w | ≥100MΩ |
| PLS-4QXHNQ-3868 | 67±2.0 | 4800±10% | ≤20Ω | 50*65 | 50w | ≥100MΩ |
| PLS-4QXHNQ-3880 | 79±1.5 | 4800±10% | ≤25Ω | 40*54 | 60w | ≥100MΩ |
| PLS-4QXHNQ-38100 | 100±1.5 | 4800±10% | ≤25Ω | 40*57 | 60w | ≥100MΩ |
| PLS-4QXHNQ-38120 | 120±1.5 | 4800±10% | ≤25Ω | 40*58 | 60w | ≥100MΩ |
| PLS-4QXHNQ-35130 | 129±1.5 | 4200±10% | ≤25Ω | 36*54 | 50w | ≥100MΩ |
| PLS4QXHNQ-38160 | 160±1.5 | 4800±10% | ≤25Ω | 40*57 | 60w | ≥100MΩ |
| PLS-4AS-35165 | 165±5.0 | 4100±10% | ≤60Ω | 42*61 | 40w | ≥100MΩ |
| PLS-4AH-25200 | 200±2.0 | 2300±10% | ≤35Ω | 30*35 | 20w | ≥100MΩ |
| Screw hole size (diameter * pitch * depth)M10*1.0*10 |
>>
