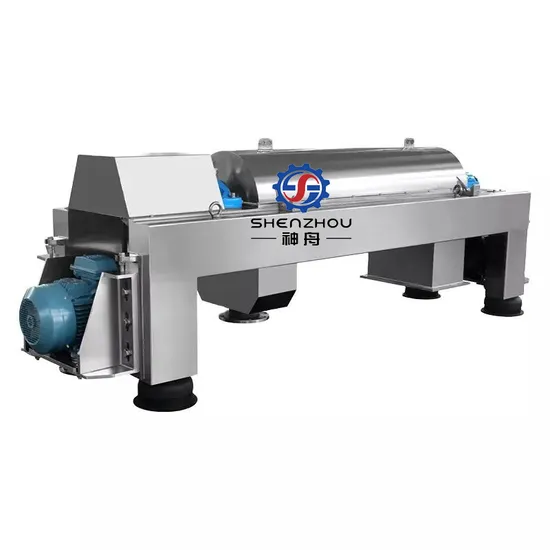

High-Efficiency 3 Phase Decanter Centrifuge for Industrial Use

Product Description

High-Efficiency 3 Phase Decanter Centrifuge for Industrial Use

Configuration
1.Motor: Dual motor and Dual inverter.
2.Bearing is S-K-F.
3.The PLC touch screen .(Siemens)
4. Run mode: 24 hours continuously.
7. Starting and driving way: inverter
8. Vibration sensors: when the machine have problem. The instrument will automatically alarm and make the machine stop.
9. Quick sensors is can show the running speed.
10. Feeding method: continue feeding.
11. Discharging way: automatic continue discharge.

Material:
1. All the part contacting with the material is ss304.the machine bowl is SS304.
2. Engine base: carbon steel
3. Base on the surface: protective primer and finish for carbon steel.
4. The spiral is used to surfacing hard alloy wear-resistant layer.
5. The bowl exit is cermet.

Working principle
The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum;
under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine.
The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.
Structural Diagram

Technical Paramter:

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter) mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

Real machine picture:
More parts show of the decanter centrifuge:
Packing Way:
Certification:
Company introduction:
Shenzhou Machinery - Professional Industrial Centrifuge Machine Manufacturer and Centrifugal Separators Supplier in China.
We specialize in manufacturing high-performance industrial centrifuge machine and all kinds of centrifugal separation equipment have over 50 years of industry experience. We provide professional one-stop customized centrifuge separator services. Widely used in chemical industry, medicine, biology, food, environmental protection and other fields. We provides engineered 3D designs by 3D printer to meet your ideas. We have always followed the standardization rules for a rigorous production process, saving time and cost for both parties and bringing maximum benefits to you.

---
