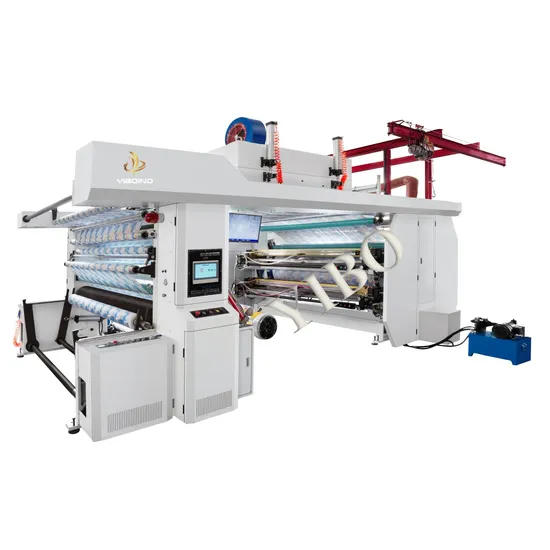

High Speed 4/6/8 Colour Economic Kraft Paper BOPP Pet PP CPP Plastic Bag Film Central Drum Ci Flexo /Flexographic Printing Machine Press

Product Description

Product Parameters
Technical Parameter:
1) Ink Roller :Ceramic anilox roller
2) Ink :Adopt the automatic circle system ,running ink by single small motor
3) Timing :Adopt frequency speed control, small fluctuations running.
4) Unwinding and winding ways :Adopt magnetic powder tension control
5) Ink way :Chamber doctor blade and anilox roll
6) Up and down plate :Adopt the hydraulic pressure rising and down the printing plate automatically
7) Traction Rollers :Adopt small semi-enclosed bearings, with static balance and dynamic balance treatment, hard oxidation
treatment, small resistance, small beating.
8) Drying device: Two sets with ventilation hair heating devices, which use a central heating temperature control system and the control group
9) Body: Thick wall, thick base, making the machine more stable.
10) Control way: PLC control

1,Printing Substrate:
plastic film, Roll paper, non - woven fabrics and other flexible packaging materials
2,The working principle of the machine (mainly including the following parts) :
Unwind unit → pre-press tension swing bar → pre-press deviation correction → pre-press traction → printing unit (8 colors) → heating and drying → tension swing bar before traction → rewind traction → tension swing bar before rewinding → Rewind unit → control system and operating table
3,Basic parameter
Model	KSCI-E-8 Color-1000mm
Printing Color	8 Color(single side)
Max material width	1000mm
Max effective printing width	970mm
Printing length	345-860mm
Mechanical speed	50-280m/min
Printing speed	50-260m/min(According to the printing of different materials)
Overprint precision	Horizontal:±0.12 longitudinal:±0.13
Plate thickness (including double-sided adhesive tape)	1.14 or 1.7mm(thickness of double-sided adhesive: 0.38mm)
Anilox roller	Ceramic anilox roller
Ink type	Water based ink or Solvent ink
Heating power	128KW
Total power	168KW
Machine weight	About:20000Kg
Machine size	8500*3400*4250mm
Working power supply	3P 380V 50HZ

Detailed Photos

Packaging & Shipping
Client

FAQ
Packaging & Delivery1.Packaging Details: wooden pallet or plastic film 2.Delivery Detail: 30-60 days 3.Port: Ningbo port 1.Where is your factory LocatedOur Factory Located in Ruian City ,Zhejiang Province ,China .It is about 40minutes by plane from Shanghai, about 5 hours by train fromShanghai .We are pleasured to pick up you when you arrived .2. What should we charge for your engineer?Our engineer is available to go to your country to install the machine for you. Buyer have to bear the charges including round-trip tickets, cost of visa and accommodations .Salary for one engineer is 150USD per day. 3. How long is your machine's warranty period?All our machine have one year guarantee, starting from finished installation.

---
