Product Details
Product Description
Product Description
The main performance characteristics:
Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance
Product main technical parameters

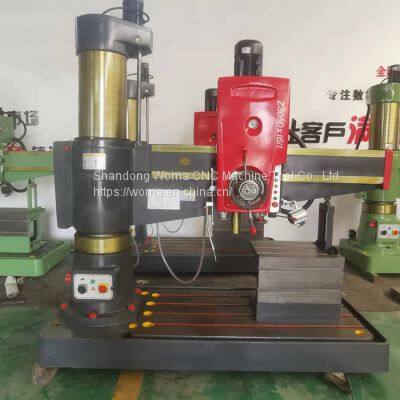

| SPECIFICATIONS | Z3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1240 |
| Distance between spindle axis and column surface (mm) | 350-1640 |
| Spindle travel (mm) | 330 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed step | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 5.5 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500×1060×2800
|
Company Information
Shandong Woma CNC Machine Tool Co., Ltd. is one of the leading machine tool manufacturers and exporters in Shandong Province, China. We have more than 20 years of manufacturer experience. Our main products include CNC machining centers, CNC gantry milling machines, vertical milling machines, horizontal milling machines, universal milling machines, gantry milling machines, ram milling machines and vertical drilling machines, with a total of 30 categories.
We are a manufacturer, not a trading company. All our products have passed CE and ISO9001 certification. Our main customers include KNUTH of Germany and Bernardo of Austria. You can trust our quality and service.
I hope we can establish a long-term business relationship with you.
>>
