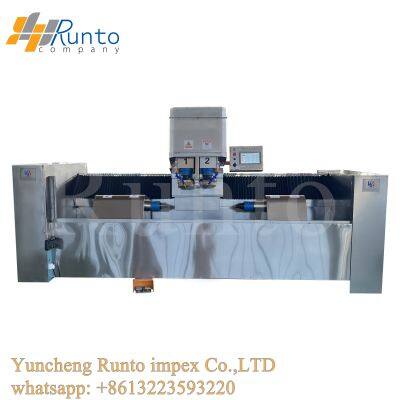

Double Head Copper Grinding Machine for Gravure Cylinder

Product Description

Product Description
Details:Double Head Copper Grinding Machine for Gravure cylinder is designed and manufactured specially for rotogravure cylinder making printing roller on the basis of Japanese Engravure Cylinder Grinding Machine. The whole bed is welded with steel structure and annealed under stress. Rotogravure cylinder making Double head grinding machine more smoothly and has higher precision
Product Introduction：
Gravure printing cylinder making machinery shaft, sleeve and top are processed by quenching, phosphating with high frequency strictly as the drawing, which makes the gravure equipment have better performance and longer service life. All imported parts and electrical components are used in the key parts, for example,Automatic Stone Polishing Grinding Machine for rotogravure linear guide track applies Hiwin, ball screw applies TBI of the world-famous brands; PLC, inverter, encoder, proximity switch are the preferred brand manufacturing. Thus they effectively ensure the Engraving cylinder grinding machine quality and service life of the whole machine.
Product Advantage
A.The Linear Ball Guide and the ball screw drive structure ensure the reliability and stability of the engravure cylinder making equipment;
B.Gravure Double head grinding machine PLC control system and touch screen interface make the machine more convenient and simple in use.
C.The cylinder making copper polishing machine is protected by stainless steel, which effectively prevents water containing sulphuric acid and intaglio copper sulfate from entering the inside of the machine, so that the internal components are effectively protected.
D.Printing cylinder making roller Automatic lubrication system: Automatic timing and quantitative refueling ensure the normal operation for the lubrication parts of the machine, which extends its service life.
Working Capacity

Type	STYM1300	STYM1500	STYM1700	STYM2000
Hollow cylinder length	300-1300	300-1500	300-1700	300-2000
The cylinder diameter	90-400	90-400	90-400	120-500
Spindle Rotating speed	30-500	30-500	30-500	30-450
Grinding head movement speed	10-180	10-180	10-180	10-180
Grinding head Rotating speed	20-750	20-750	20-750	30-750

Details images
Auto gravure cylinder machinery with excellent material quality

---
