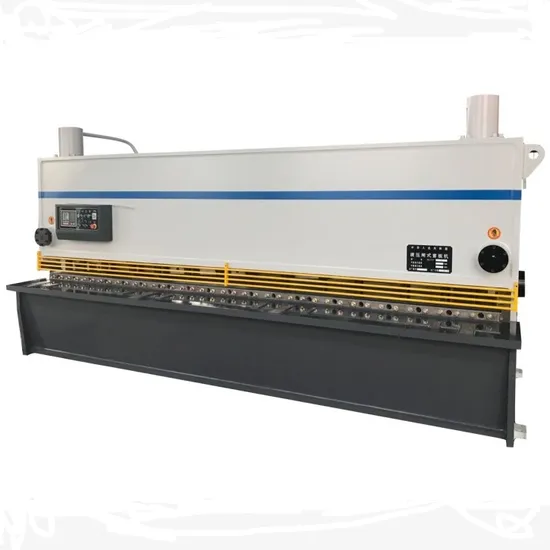

QC11Y-12X3200 Hydraulic metal sheet shearing machine

Product Description

Performance: 1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
2.Integrated hydraulic transmission system,with good reliability.
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing.
4.Mechanical rear stopper with manual fine tuning and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life,adjustable shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections,function of aligning with light.
9.Optional:rear material holding device(or for other choice).

Specification	Shear Thickness	Shear Width	Number of Stroke	Backgauge Rang	Shearing Angle	Motor Power
	mm	mm	min-1	mm	(°)	kw
QC11Y-4×2500	4	2500	15-35	20--600	0.5-1°30'	5.5
QC11Y-4×3200	4	3200	12-35	20--600	0.5-1°30'	5.5
QC11Y-4×4000	4	4000	10-35	20--600	0.5-1°30'	5.5
QC11Y-6×2500	6	2500	10-30	20--600	0.5-1°30'	7.5
QC11Y-6×3200	6	3200	8-30	20--600	0.5-1°30'	7.5
QC11Y-6×4000	6	4000	7-30	20--600	0.5-1°30'	7.5
QC11Y-6×5000	6	5000	6-20	20--800	0.5-1°30'	11
QC11Y-6×6000	6	6000	5-20	20--800	0.5-1°30'	11
QC11Y-8×2500	8	2500	10-30	20--600	0.5-1°30'	7.5
QC11Y-8×3200	8	3200	8-30	20--600	0.5-1°30'	7.5
QC11Y-8×4000	8	4000	7-30	20--600	0.5-1°30'	7.5
QC11Y-8×5000	8	5000	6-25	20--800	0.5-2°	15
QC11Y-8×6000	8	6000	5-25	20--800	0.5-2°	15
QC11Y-12×2500	12	2500	10-20	20--800	0.5-2.5°	15
QC11Y-12×3200	12	3200	6-20	20--800	0.5-2.5°	15
QC11Y-12×4000	12	4000	6-20	20--800	0.5-2.5°	15
QC11Y-12×5000	12	5000	5-15	20--800	0.5-2.5°	15
QC11Y-12×6000	12	6000	6-15	20--800	0.5-2.5°	30
QC11Y-16×2500	16	2500	8-15	20--800	0.5-2°30'	18.5
QC11Y-16×3200	16	3200	7-15	20--800	0.5-2°30'	22
QC11Y-16×4000	16	4000	6-15	20--800	0.5-2°30'	30
QC11Y-16×5000	16	5000	6-15	20--800	0.5-2.5°	30
QC11Y-16×6000	16	6000	5-15	20--800	0.5-2.5°	37
QC11Y-20×2500	20	2500	9-15	20--1000	0.5-3°	30
QC11Y-20×3200	20	3200	7-15	20--1000	0.5-3°	30
QC11Y-20×4000	20	4000	6-15	20--1000	0.5-3°	30
QC11Y-20×5000	20	5000	5-15	20--1000	0.5-3°	37
QC11Y-20×6000	20	6000	5-15	20--1000	0.5-3°	45
QC11Y-25×2500	25	2500	5-15	20--1000	0.5-3.5°	37
QC11Y-25×3200	25	3200	4-15	20--1000	0.5-3.5°	37
QC11Y-25×4000	25	4000	3-15	20--1000	0.5-3.5°	37
QC11Y-32×2500	32	2500	4-12	20--1000	0.5-3.5°	55
QC11Y-32×3200	32	3200	4-12	20--1000	0.5-3.5°	55
QC11Y-40×2500	40	2500	3-12	20--1000	0.5-4°	60
QC11Y-40×3200	40	3200	3-12	20--1000	0.5-4°	60

---
