72.5kv, 110kv, 132kv Pre-Molded Slip-on Cable Insulation Joint with Screen Interruption

Product Description

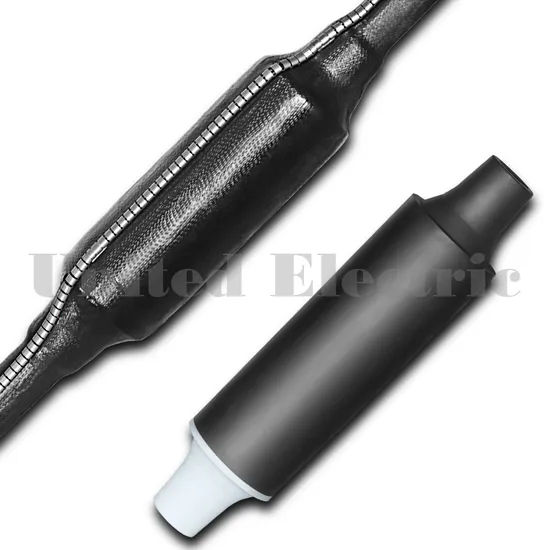

72.5kV, 110kV, 132kV Pre-molded Slip-on Cable Insulation Joint with Screen Interruption
The pre-molded slip-on joint body is entirely made of silicone rubber, this enables the secure and efficient connection of two polymeric-insulated cables (XLPE, EPR). Insulation and straight through joints suit for voltages from 52kV to 145kV. The tested and applied materials comply with all electrical, mechanical and thermal requirements for rebuilding the cable insulation. Applicable cross section: 240-1600 sq.mm cable. KEMA Inspection Type Test Report in accordance with IEC60840: 2011 is available. Cross-link Boxes is available
Specification

Max. operating voltage Um(kV)	72.5	126	145
Standards	IEC 60840	IEC 60840	IEC 60840
Rated voltage (kV)	60 - 69	110 - 115	132 - 138
Rated lightning impulse withstand voltage (BIL) (kV)	325	550	650
Partial discharge measurement (pC)	< 5	< 5	< 5

Technical data

Structure Feature	Joint with Screen Interruption / crossbonding
Protective housing	Heat shrinkable sleeve housing / Copper shell / FRP with resin/ Copper shell & FRP with resin
Dimensions	Cross section range: 400-1600sq.mm
Cable structure	Wire screen / Al-corrugated sheath / Lead sheath
Conductor	Copper / Aluminum
Operation / Application	Outdoor
Standards	IEC60840
