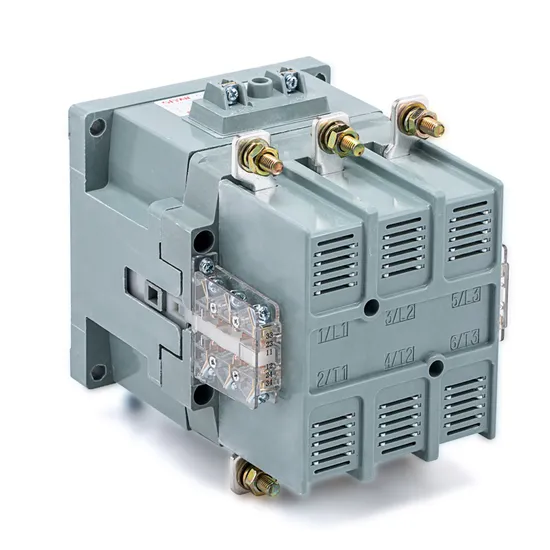

Siyan AC Contactor 220V 500A Cj40 380V AC Magnetic Contactor

US$105.00
10-99 Pieces
US$104.50
100-999 Pieces
US$104.00
1,000+ Pieces

Basic Info.

Model NO.
CJ40-500A
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
500
Type
Ac Contactors
Touch Spot
Semisilver
Yearly Output
50000 Pieces
After Service
12 Months
Transport Package
Paper Box
Specification
Package volume145*118*155mm
Trademark
siyan
Origin
China
HS Code
85363000
Production Capacity
50000 Pieces/Year

Product Description

FAQ
Product Description
CJ40 series AC contactors are suitable for frequency 50Hz, rated voltage up to 660v, rated current up to 80A-1000A, It is mainly used for making or breaking electric circuits at a long distance& for frequent starting& stopping, controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter.

Main parameters and technical performance
Contactor model Shell frame Grade RatedinsulationVoltageLth(A) Freedom ofAgreementAir heatingcurrentLth(A) Controllable three-phase under AC-3usage categoryMaximum power of squirrel cagemotor (kW) Operate everyhourCycle severaltimes/h(AC-3) AC-3Electricallifespan (Tenthousandtimes) coil power SelectedFuses(SCPD)model
220V 380V 660V 1440V Start (VA) Maintain(VA)
CJ40-63 63-125 1140 80 18.5 30 55 55 1200 120 480 50 RT16-160
CJ-40-80 22 37 55 55 RT16-160
CJ40-100 125 30 45 75 75 RT16-250
CJ-40-125 37 55 75 55 RT16-250
CJ40-160 160-250 45 75 110 110 880 85 RT16-315
CJ40-200 250 55 90 110 110 RT16-315
CJ40-250 75 132 110 110 RT16-315
CJ40-315 315-500 500 90 160 300 300 600 60 1710 190 RT16-500
CJ40-400 110 220 300 300 RT16-500
CJ40-500 150 280 300 220 RT16-4/630
CJ40-630 630-1000 800 200 335 475 475 300 30 3578 91.2 RT16-4800
CJ40-800 250 450 475 475 HT17-412501000
CJ40-1000 1000 360 625 475 660
