Basic Info.
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Laser Control Fault Cutting
Transport Package
Wooden Case
Specification
5200x2100x1560mm
Product Description
Prima 300W Stainless Steel Laser Welding Machine
Technical Specifications:
Power / Material Weld depth | Stainless Steel | Mild steel | Galavinised Steel |
500W | 0.5-0.8mm | 0.5-0.8mm | 0.5-0.8mm |
750W | 0.5-1.2mm | 0.5-1.2mm | 0.5-1.0mm |
1000W | 0.5-1.5mm | 0.5-1.5mm | 0.5-1.2mm |
2000W | 0.5-3mm | 0.5-3mm | 0.5-2.5mm |
Model features:
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
Product advantages:
The laser welding machine adopts 150-3000 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser. Handheld Fiber transmission Laser Continuous Welding Machine 300W/500W for metal handheld fiber stainless steel laser welding machine price professional handheld metal fiber laser welding machine price 2mm stainless steel sheet handheld 1000w fiber laser welding machine 1000w optical fiber laser welder 1000w handheld laser welding machine 500W 1000W handheld portable laser welding machine YAG fiber laser welding machine with welding gun
Basic configration
No. | Description | Brand | Origin |
1 | Machine main body | Prima | China |
2 | CNC operationg carbinet | Prima | China |
3 | Smoke dust sucking structure | Prima | China |
4 | air conditioning cabinet | Prima | China |
5 | Fiber Laser | IPG-700W | Germany |
6 | Laser cutting head | RayTools | Swiss |
7 | laser chiller | Han's/S&A | China |
8 | CNC system | CypCut | China |
9 | Capacitive THC | CypCut | China |
10 | Servo motor | Schneider | France |
11 | Gear rack | YYC/ Level 6 precision | Taiwan |
12 | Linear Guide | Hiwin | Taiwan |
13 | Precision reducer | Neugar | German |
14 | Proportional valve | SMC | Japan |
15 | high-pressure valve | SMC | Japan |
16 | Electronic pieces | Schneider | France |
17 | Solenoid valve | SMC | Japan |
18 | Air cylinder | AirTAC | Korea |
19 | Air Conditioner | WINHENG | China |
20 | Cutting software | CypCut | China |
21 | Composing software | SmartNest | China |

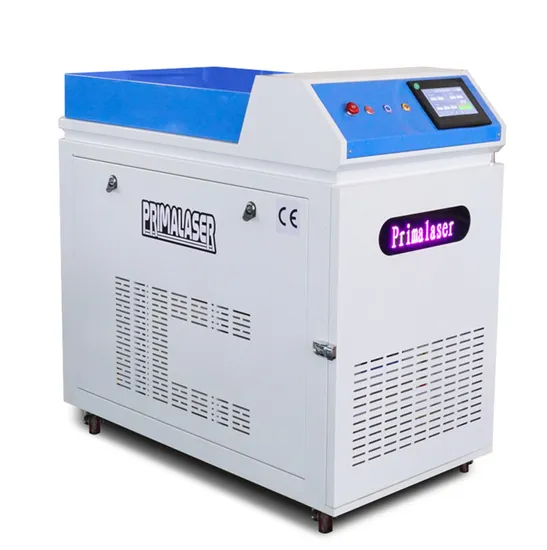

Detailed Photos:
Handheld laser welding machine 500W stainless steel laser soldering
About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd which is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit. China Handheld Fiber Laser Welding Machine 200W 400W in China
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
Pre-sales and after-sales services
>>
