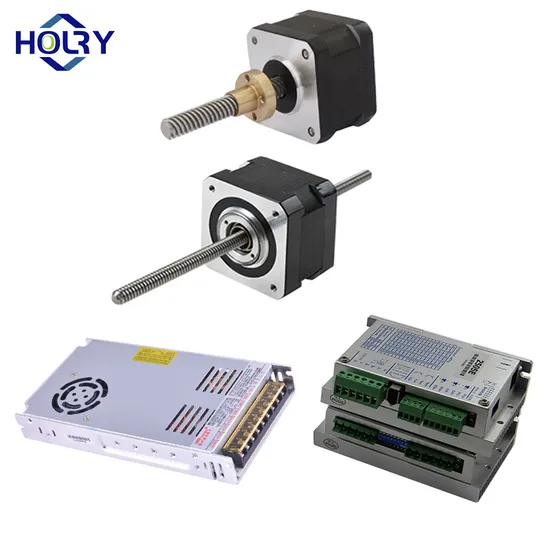

Customized Micro Linear Actuator Hybrid Stepper Motor NEMA17 Linear Stepper Motor

US$34.90
1-9 Pieces
US$31.90
10-99 Pieces
US$26.90
100+ Pieces

Basic Info.

Model NO.
42HBSG
Number of Stator
Three-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
6
Operate Mode
The Three Single Phase
Type
Magnetic-Electric
Certification
ISO9001
Brand
Holry
Transport Package
Carton
Specification
42HSG
Trademark
HOLRY
Origin
Changzhou
HS Code
8501400000
Production Capacity
50000pieces

Product Description

Series Model Step Angle (°) Motor Length (mm) Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Rotor Inertia (g.cm²) Lead Wire (NO.)
42HB34F04SG 1.8 34 0.4 33 45 2.4 34 4
42HB34F08SG 1.8 34 0.8 6.2 10 2.4 34 4
42HB34F105SG 1.8 34 1.5 1.8 2.4 2.4 34 4
42HB40F04SG 1.8 40 0.4 30 45 3.8 54 4
42HB40F08SG 1.8 40 0.8 11 26 4.0 54 4
42HB40F105SG 1.8 40 1.5 2.1 4.0 3.5 54 4
42HB48F08SG 1.8 48 0.8 9 15 4.5 68 4
42HB48F107SG 1.8 48 1.7 2.0 3.0 4.5 68 4
42HB62F105SG 1.8 62 1.5 2.7 6.0 6.5 102 4
42HB62F2SG 1.8 62 2.0 1.6 3.0 8 102 4
