Marine Hydraulic Mooring Winch 60 Ton

Product Description

Product Description
Hydraulic winch usually consists of a hydraulic motor, the control valve group, gear box, a roller, a bracket rope pressing deviceor rope device, installation bracket combination and. Can be widely used in conveyor tensioning device and mechanical engineering from heavy machinery such as truck crane, crawler crane,aerial vehicles, forestry crane, and shipping ports such as port cranes, floating crane, dredger, cranes, davits, and can for large play equipment such as oil rigs and offshore oil drilling platform, piling machinery rotary drilling rig, drilling, core drilling, hydrostatic pressure pile machine and so on.

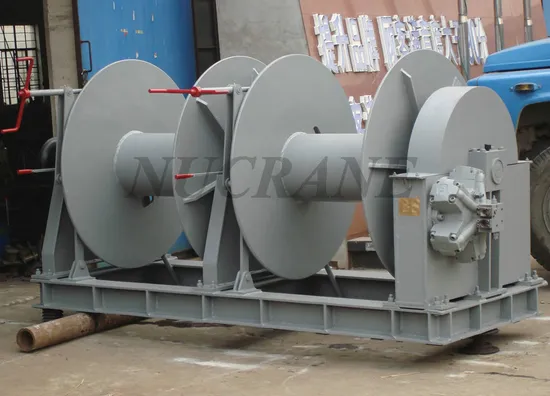

Detailed Photos

The full floating planetary gear reducer makes the operation more stable and the structure more reasonable. Adopt multi - plate friction normally closed system. The actuator has high braking torque and safety. The product has the characteristics of small volume, compact structure and high transmission efficiency Has the function of free fly Adopt brand motor, long service life. The mounting bracket can be manufactured separately according to user's requirement According to the needs of users, the special winch balance valve, shuttle valve. Adopt manual, pneumatic clutch device.
* Reasonable compact structure design* Small size, light weight* Nice appearance* Perfect starting and working efficiency* Large torque and good stability* Less noise* Easy and safe operation, * Perfect erosion resistant coating,* Easy installation and low maintenance
* Drum Quantity:Single or Double
* Speed:12m/min
* Chain Diameter:17.5~60mm
* Rated Load:13-153kN
* Steel deck anchor combined Windlass for Marine Vessels boats can be powered by various sources, including electric motors, hydraulic systems, or even engine driving. The choice of power source depends on the size and type of vessel, as well as the specific requirements of the windlass.
* Steel deck anchor combined Windlass for Marine Vessels boats is made of high-quality materials such as stainless steel or aluminum, which ensures durability and good look.* Depending on the specific requirements of the vessel, windlasses can be customized with various options such as different sizes, power ratings, and control features.
Certifications
*Classification Society: CCS, ABS, BV, DNV, GL, RINA, LR, RMRS, etc.
Product Parameters

Model	Chain Diameter (mm AM2)	Rated Load (KN)	Overload Load (KN)	Holding Load (KN)	Speed (m/min)	Winch Rated Load (KN)	Winch Speed (m/min)	Power
								Electric(KW)	Hydraulic(MPA)
DMA(B)17.5-D	17.5	13.0	19.5	81	≥ 9	10	≥ 12	4.3/1.7	5.5
DMA(B)19-D	19	15.3	23	95	≥ 9	10	≥ 12	4.3/1.7	5.5
DMA(B)20.5-D	20.5	17.9	26.9	110	≥ 9	15	≥ 12	4.3/1.7	7.5
DMA(B)22-D	22	20.6	30.9	126	≥ 9	15	≥ 12	6/2.5	7.5
DMA(B)24-D	24	24.5	36.8	145	≥ 9	20	≥ 12	8.5/3.5	11
DMA(B)26-D	26	28.7	43.1	175	≥ 9	20	≥ 12	8.5/3.5	11
DMA(B)28-D	28	33.3	50	202	≥9	25	≥ 12	11/11/7.5	15
DMA(B)30-D	30	38.3	57.5	231	≥ 9	30	≥ 12	11/11/7.5	15
DMA(B)32-D	32	43.5	65.3	262	≥ 9	35	≥ 12	11/11/7.5	15
DMA(B)34-D	34	49.1	73.7	295	≥ 9	40	≥ 12	11/11/7.5	18.5
DMA(B)36-D	36	55.1	82.7	329	≥ 9	45	≥ 12	16/16/11	18.5
DMA(B)38-D	38	61.4	92.1	365	≥ 9	50	≥ 12	16/16/11	22
DMA(B)40-D	40	68.0	102	403	≥ 9	60	≥ 12	16/16/11	22
DMA(B)42-D	42	75.0	112.5	442	≥ 9	65	≥ 12	22/22/16	30
DMA(B)44-D	44	82.3	123.5	486	≥ 9	70	≥ 12	22/22/16	30
DMA(B)46-D	46	89.9	134.9	527	≥ 9	75	≥ 12	22/22/16	30
DMA(B)48-D	48	97.9	146.9	572	≥ 9	80	≥ 12	30/30/22	37
DMA(B)50-D	50	106.3	159.5	617	≥ 9	85	≥ 12	30/30/22	37
DMA(B)52-D	52	114.9	172.4	666	≥ 9	90	≥ 12	30/30/22	37
DMA(B)54-D	54	123.9	185.9	716	≥ 9	95	≥ 12	30/30/22	45
DMA(B)56-D	56	133.3	200	770	≥ 9	100	≥ 12	30/30/22	45
DMA(B)58-D	58	143.3	214.5	815	≥ 9	105	≥ 12	45/45/30	55
DMA(B)60-D	60	153	229.5	873	≥ 9	110	≥ 12	45/45/30	55

Packaging & Shipping
FAQ
1. What kind of after-sale services will you supply?
One year warranty.
Providing free quick-wear part.
Low charge for continue maintenance when warranty is expired.
Exclusive engineer support at any time.
We can provide free training to end-users.
2. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,
our engineers can make suitable design for you
3. Can you book the boat for me, as we do not have our own forwarder?
Sure, we have our own forwarder, and we had cooperated with the forwarder more than 5 years
4. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,
or you can let some third-partied to do the inspection for you.
5. How can I install the crane?
Our engineers can come to your work site to guide the installation.
6. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.

---
