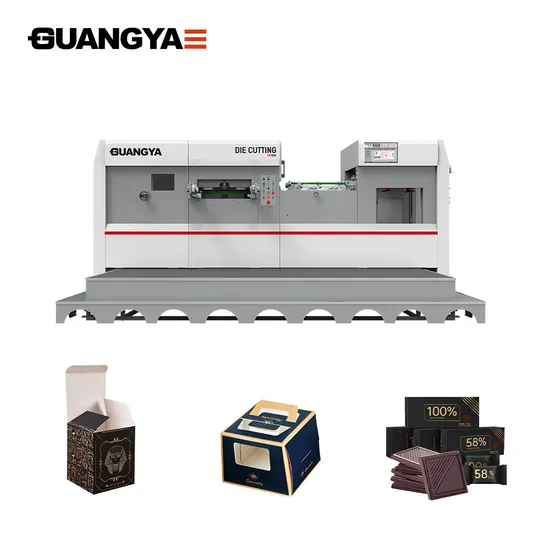

High Speed Automatic Die Cutting Machine for Smaller Size Paper (800*620mm)

Product Description

TECHNICAL PARAMETER

Model	LK800
Max.paper size	800×620mm
Min.paper size	360×290mm
Max.cutting size	790×610mm
Inner chase size	880*628mm
Max working speed	9000s/h
Cutting precision	±0.1mm
Pressure	200T
Paper range	90-2000g
Machine weight	12.5T
Max.feeding pile height	1280mm
Max.delivery pile height	1070mm
Main motor power (	7.5kw
Total machine power	14kw
Air requirements	0.6Mpa, >0.37m3/min
Overall dimension	4545×3685×2245mm

MAIN FEATURES
Non-stop Feeder
• Non-stop High-Speed Feeder
• Feeder anti-collision protection
• Pile tray side guide can be adjust electrically
• Pre-stacking paper function, non-stop paper feeding function
Feed Table
• Imported belts
• The belt is automatically tightened, no need to adjust
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
Host Station
• Electrically pressure adjustment function
• Automatic pressure keeping and pressure reduction function (only foil stamping)
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy (only stripping)
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
Delivery
• Auxiliary delivery function
• Mechanical braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)
• Safety light curtain (optioinal)
Control System
Operating System
• 18.5-inch industrial control large-size true color touch capacitive screen (only die cutting and stripping)
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• All imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Large-capacity air circulation filter system for electrical cabinets
• Air conditioner for electric cabinet (optional)

*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES
CERTIFICATE
DELIVERY
The Unique Human Care and Profession Passionate Sales Service System:
We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 5 days with professional knowledge.
We focus on customer service, all year non-stop service, personal training and so on.
Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training,exchange management platform and so on.
Realizing the idea of focusing on customer success, creating value to customer.
