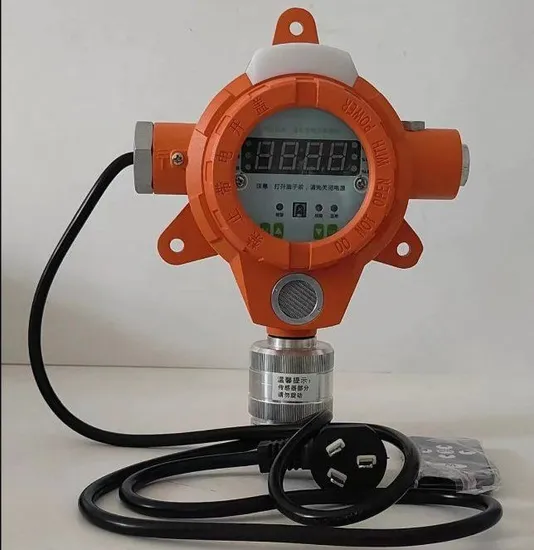

Nkyf Fixed Single Combustible Gas Detector

Product Description

Products Description
The GTYQ-JKD-315 series industrial and commercial point type combustible gas detector (hereinafter referred to as the detector) is a new type of gas detection instrument produced by our company. This machine is made using high-performance gas sensitive components and microcontroller technology, combined with advanced SMT technology. It has good repeatability and temperature and humidity characteristics, as well as long service life and easy operation. It is suitable for environments where gas may leak, such as small restaurants, shopping malls, and underground comprehensive pipe galleries. When the gas concentration in the environment exceeds the set concentration, an alarm will be triggered through indicator lights and buzzers. At the same time, it can drive electromagnetic valves, fans, and other equipment to protect the safety of users and property.
This detector has the characteristics of easy installation, compact structure, low cost, explosion-proof, stable and reliable, easy operation and maintenance, and flexible wiring.
The design, manufacturing, and calibration of this product comply with the following national standards:
(1) GB 15322.1-2019 (Combustible Gas Detectors for Industrial and Commercial Purposes);
(2) GB/T 20936.1-2017 "Gas detectors for explosive atmospheres - Part 1: Performance requirements for combustible gas detectors";
(3) GB/T 20936.2-2017 "Gas detectors for explosive atmospheres - Part 2: Selection, installation, use, and maintenance of combustible gas and oxygen detection";
(4) GB 3836.1-2010 Explosive Atmospheres Part 1: General Requirements for Equipment;
(5) GB 3836.2-2010 Explosive Atmospheres Part 2: Equipment Protected by Explosion proof Enclosures "d";
(6) GB 3836.9-2014 Explosive Atmospheres - Part 9: Equipment protected by pouring type m;
(7) JJG 693-2011 "Verification Regulations for Combustible Gas Detection Alarm"; Product Parameters

Sensor type	laser
tracer gas	methane
sample mode	Natural diffusion
service environment	Outdoor type
working voltage	AC220V+20V
power dissipation	≤5W
range	(0-100)%LEL
Alarm deviation	±5%FS
Response time (t90)	combustible gas≤30s
Set the low alarm value	20%LEL
Set the high report value	50%LEL
Switching quantity/pulse signal	1. Relay 1: Can drive the fan and other equipment 2. Relay 2: Pulse can drive equipment such as solenoid valve
Networking (optional)	4G/NB/ Independent

manner of working	continuous detection
operating mode	infrared remote control
status indicator lamp	Yellow fault indicator, red alarm indicator, green indicator normal monitoring status
operating temperature	-40~70ºC (Outdoor environment)
operating humidity	≤95%RH No condensation
environment stress	86KPa~ 106KPa
level of protection	IP66
Explosion-proof mode	flame-proof type
hazardous rating	ExdbIICT6Gb
material of the housing	aluminium alloy
boundary dimension	240x190x80 mm
total weight	< 2.0kg
electrical interface	M27*1.5
Use cable	≥1.0mm2 Shielded cable.
Sensor life	5 years (Laser)

Product characteristics It mainly consists of a casing, sensor module, circuit board, etc. The casing is mainly composed of an upper cover, a top cover, a lower cover, a sealing plug, a protective cover, and a buzzer module. Composed of plugs and other components, the shell plays an explosion-proof and protective role. Detailed Images Click here to ask us for any detailed information about gas detectors! Multi-gases Choices NOTICE: NKYF specializes in the production of various types of gas detectors. If you are not sure which product to choose and what scenario is suitable for use, please feel free to contact us for free professional advice Except belowing normal gases, other gases and measuring ranges are all support customized, please click to contact us for more details

Measured gas	Measuring range	Selectable range	Resolution
Combustible Ex	0-100%LEL	0-100%VOL	1%LEL/1%VOL
Oxygen O2	0-30%VOL	0-30%0-100%VOL	0.1%VOL
Hydrogen Sulfide H2S	0-100PPM	0-502001000PPM	0.1/1PPM
carbon monoxide CO	0-1000PPM	0-500/2000/5000PPM	0.1/1PPM
nitrogen dioxide NO2	0-20PPM	0-501000PPM	0.1/1PPM
natural gas	0-100%LEL	0-100%LEL	1%LEL
Nitrogen oxides	0-20PPM	0-501000PPM	0.1/1PPM
Methane CH4	0-100%LEL	0-100%LEL	1%LEL/1%VOL
carbon dioxide CO2	0-5000PPM	0-1%5%10%VOL	1PPM/0.01%VOL
Nitric oxide NO	0-250PPM	0-5001000PPM	1PPM
nitrogen N2	0-100%LEL	0-100%VOL	1%VOL
Alcohol	0-100%LEL	0-100%LEL	1%LEL/1%VOL
Sulphur dioxide SO2	0-20PPM	0-501000PPM	0.1/1PPM
Chlorine CL2	0-20PPM	0-10100PPM	0.1PPM
Dichlorosilane	0-20PPM	0-20100PPM	1PPM/0.1PPM
Ammonia NH3	0-100PPM	0-505001000PPM	0.1/1PPM
Silicon tetrachloride	0-20PPM	0-20100PPM	1PPM/0.1PPM
Hydrogen H2	0-100%LEL	0-1000PPM	1%LEL/1PPM
Phosphine PH3	0-20PPM	0-200-100PPM	0.01/0.1PPM
Hydrogen chloride HCl	0-20PPM	0-2050100PPM	0.01/0.1PPM
Acrylonitrile	0-100PPM	0-100PPM	1PPM/0.1PPM
TVOC	0-100PPM	0-100PPM	1PPM/0.1PPM
CLO2	0-50PPM	0-10100PPM	0.1PPM
Hydrogen cyanide HCN	0-50PPM	0-100PPM	0.1/0.01PPM
Ethylene oxide ETO	0-10PPM	0-100PPM	1PPM/0.1PPM
Ozone O3	0-10PPM	0-20100PPM	0.011PPM/0.1PPM
Formaldehyde CH2O	0-20PPM	0-50100PPM	1/0.1PPM
Fluorine gas F2	0-10PPM	0-110PPM	1PPM/0.1PPM
Hydrogen fluoride HF	0-10PPM	0-11050100PPM	0.01/0.1PPM
Xylene, Toluene	0-20PPM	0-51050100PPM	0.01/0.1PPM
malodor	0-100PPM	0-100PPM	1PPM/0.1PPM

Company Profile
FAQ 1.Q:Can I have a sample order to test quality? A: Yes, we re commend and welcome sample order to test and check before order. 2.Q: Do you offer guarantee for the products? A: Yes, we offer 1 or 2 years guarantee for the products. 3. Q: If I order big quantity, Can I have a cheaper price? A: We will reduce the price according to the specific quantity and your requirements for the product. 4.Q: How does your I factory do regarding the quality control? A: Quality is priority, Our factory has passed ISO 9001 with annual audit. Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials. validated or tested materials, finished goods. etc.

---
