75kw Wire Saw Machine Mining Equipment for Granite/Marble Quarry

Product Description

Specification
Advantages:
1.Applied advanced design and fabrication technology, the machine is suitable for grantie, marble and sandstone quarry opening.
2.The machine head can be adusted and rotated automatically.
3.Imported vector frequency concerters are equipped in to ensure the constant torque output. The feed speed can be adjusted automatically by the constant tension control system. The adjustment is stable, so the cutting condition is always remain the best.
4.The operation panel can be wire control and remote control, the monitor can show the instant current, feed speed and cutting datas.

Model	MWQ-ZL75D		MWQ-ZL55D		MWQ-ZL45D	MWQ-ZL37D
Driving motor power(KW/HP)	75KW-6P 100HP-6P		55KW-6P 75HP-6P		45KW-6P 60HP-6P	37KW-6P 50HP-6P
Flywheel diameter(mm)	800/1000		660/800		660/800	660/800
Wire saw length(m)	20-150		20-120		20-100	20-80
Wire saw diameter(mm)	11.5		11.5		11.5	11.5
Line speed(m/s)	0-50		0-40		0-40	0-40
Walking speed of machine(m/h)	0-100m/h(Slow:0.36/min; Fast:2.20m/min)
Total power(kw)	78		58		48	40
Walking moter power(Kw)	0.75(6P)
Driving head rotation motor power(kw)	1.5(6P)		1.1(6P)
Driving head walking motor power(kw)	1.1(6P)
Rotation angle	360°
Driving head moving range(mm)	0-600		0-550
Rail length(mm)	(2*1.25m)*4
Driving motor RPM(r/min)	0-980r/min
Allowed working temperature	40°C
Voltage	AC380±10 50Hz
Net weight(T)	2.8T		2.4T		2.3T	2.1T
Dimension L*W*H(mm)	2200*1450*1650		2000*1250*1500

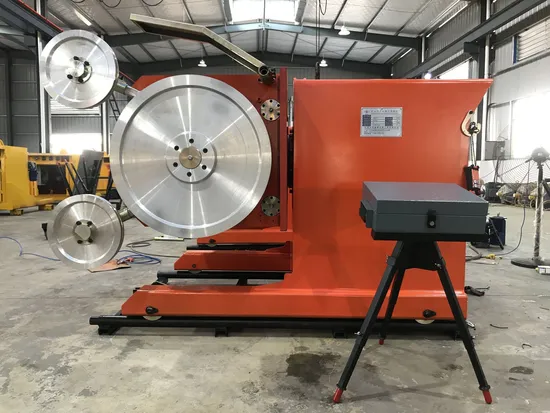

Product Pictures
