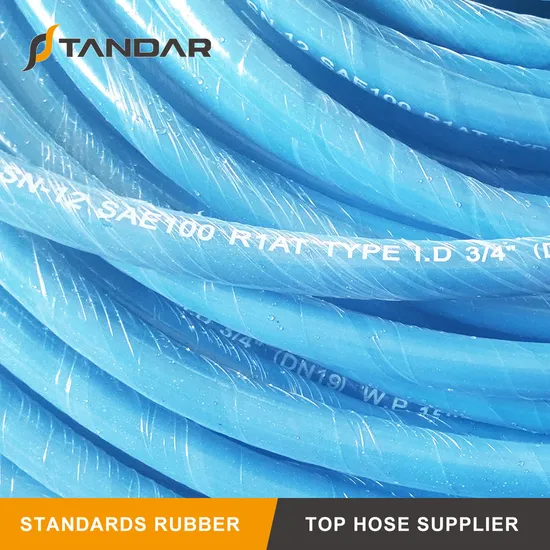

SAE100 R1at Steel Wire Braided Flexible Pressure Rubber Hydraulic Hose

Product Description

SAE 100 R1at Steel Wire Braided Hydraulic Rubber Hose
Product details:

Product: braided hose
Model Number:SAE 100R1AT
Inner tube:oil resistant synthetic rubber
Inner Dia.:3/16"-4" for braided hydraulic hose
Reinforcement:one high tensile copper-coated steel wire
Cover:heat,heavy-weather ,fatigue resistant speical synthetic rubber
Impulse:the frequency of braided hydraulic hose above 200,000times
Working temperature:-40°c-+100°C or -70°C-+160°C
Keywords: SAE 100 R1AT steel wire braided hydraulic rubber hose ; SAE 100R1AT hydraulic hose ; Braided rubber hose ; rubber hydraulic hose
SAER100R1AT steel wire braided hydraulic rubber hose tecnical parameter:

SAE 100R1 AT /DIN EN 853 1SN
Hose I.D		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres
3/16	4.8	9.5	11.8	25.0	3630	100	14280	90	0.19	100
1/4	6.4	11.1	13.4	22.5	3270	90	12840	100	0.21	100
5/16	7.9	12.7	15.0	21.5	3120	85	12280	115	0.24	100
3/8	9.5	15.1	17.4	18.0	2615	72	10280	130	0.33	100
1/2	12.7	18.3	20.6	16.0	2320	64	9180	180	0.41	50/100
5/8	15.9	21.4	23.7	13.0	1890	52	7420	200	0.45	50/100
3/4	19.0	25.4	27.7	10.5	1530	42	6000	240	0.58	50/100
1	25.4	33.3	35.6	8.8	1280	35	5020	300	0.88	50/100
1-1/4	31.8	40.5	43.5	6.3	920	25	3600	420	1.23	20 to 40
1-1/2	38.1	46.8	50.6	5.0	730	20	2860	500	1.51	20 to 40
2	50.8	60.2	64.0	4.0	580	16	2280	630	1.97	20 to40

---
