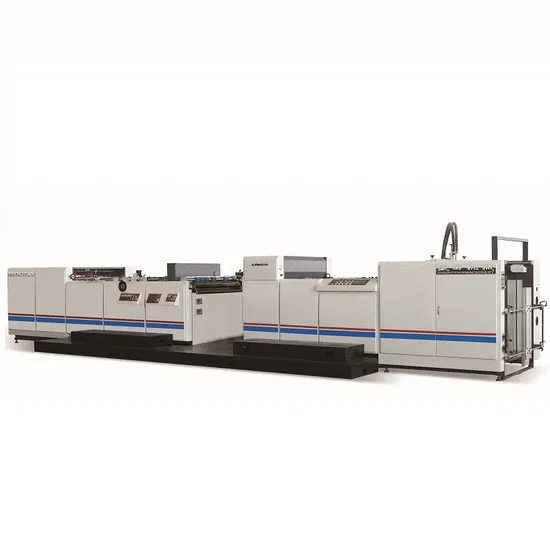

Automatic Sheet to Sheet Thermal Film Laminating Lamination Machine

Product Description

Product Description
I.Performance Of The Machine
1. This machine is made by our company according to the needs of the market and through the analysis of the same type of machine in the market as well as the manufacture and printing techniques highlighted as energy saving and high efficiency.
2. The machine adopts circling oil heating system. The high quality steel roller with special inner spiral design and heat recycling system coordinated with pré Cised processing techniques makes the roller fast in temperature rising and higher heat efficiency under high speed running which also makes a fast melting of the pre-coated glue and ensures a firm and bright film to paper lamination as well as reaches energy saving and high efficiency effect.
3. The rubber roller adopts high quality polyester rubber with the feature of good elasticity, high temperature and wear resistance. The hydraulic pressure station can provide automatic pressure supply, pressure keeping and pressure unloading according to the need of the machine. When there is a power break down, the rubber roller can automatically separate with the thermal roller to protect it and extend the life span of the rubber roller and.
4. High speed feeder with sub-piling or pre-piling system makes the machine change the paper pile without stopping the machine which greatly enhances the production efficiency.
5. The machine adopts whole wall structure processed by CNC lathe. All the rollers are balance tested. All above these together with the tight assembling technique, high quality material makes the machine to run stable at high speed and durable.
6. All the electric parts are all well-known brand in domestic and abroad- high reliability and trouble free.
7. Practice and precise servo motor and its system plus side-lay puller and touch screen makes the adjustment and operation easy with good precision (± 2 mm).
8. The separation part adopts perforation mode and equipped with paper curl elimination device to ensure a good separation no double sheet and no curling...
9. Auto-sheeting platform at delivery part which can rise up and down automatically with sheet counting functions.
Note:
1. According to the requirement of the client, the minimum sheet size can be 220*295mm, maximum sheet size1100*1450mm.
2. Other option functions: Chain Knife at Conveying part; Powder removal at conveying part- static electric,
II.Specifications

Model	FMCY-1100F
Max Speed	109 m/min
Sheet Size (Max)	1100*1450mm
Sheet Size (Min)	350*350 mm
Sheet Weight	128-450 gsm
Total Power	27.8 KW
Total Weight	5500KG
Dimension (L*W*H)	10000*2100*2100 mm

---
