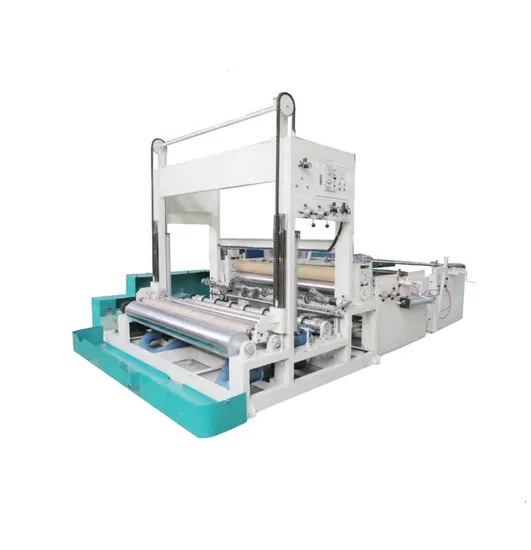

Non-Woven Slitting and Rewinding Machine

Product Description

Non-woven slitting and rewinding machine
This machine, adopting the technique of Taiwan and Germany and being renewed by our technicians, is superior to imported equipment in function and appearance.

Techinical Specifications
Working scope 1700-3400 mm
Min.cutting width shearing 50 mm,end surface leveling grade ±1 mm
Raw material roll diameter 1200 mm
Finished product roll diameter 1200 mm
Equipment structure wall panel and framework
Rewinding roller steel roller,rubber-covered roller and anti-skidding viscose tape roller(to be ordered)
Rewinding roller drive gearshift is P2 gearbox (horizontal )adjustment
This machine is equipped with automatic manual expansion control synchronous adjustment,width error within ±1 mm
Hydraulic feeding, air shaft positioning ,central roll placing and safe clamping chuck fixed
Pneumatic unload, air shaft positioning, wind in between of two rewinding rollers and lifted and dropped in the fixed groove
Speed 0-200 m/min
Frequency control speed regulating with motor of 3 kw
Electric control unit design and installation is standard with emgercy stop function and no change on the tensio
Our service:
⇒One year guarantee for whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians overseas set-up and workers training.
⇒User- friendly English for operation system.
Packing and delivery
Packaging Details:Film+ honeycomb board packing.
Delivery Detail:Shipped in 90 days after payment.
THE PACKING IS SEAWORTHY AND SAFE.
Exhibitions:


Q1: What is the warranty for the machine?
A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you . Last but not least, we also provide abroad technical training service and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over10 years experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material,auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.

---
