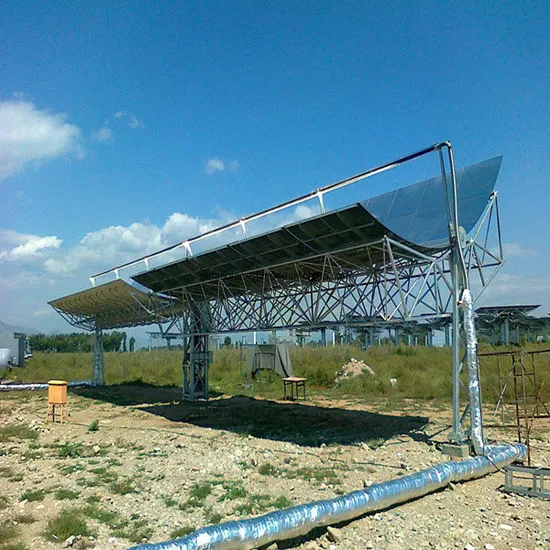

Parabolic Trough Collector

US$260.00

4-19 Pieces

US$250.00

20+ Pieces

Basic Info.

Model NO.

PT-20

Concentrating

Yes

Working Temperature Range

High Temperature

Type

Vacuum Solar Collector

Application

Water Heater, Solar Thermal

Pipe Material

Glass

Transport Package

Wood Box

Specification

4405x1795x1575

Trademark

GAIA

Origin

Shandong China

HS Code

8419901000

Production Capacity

10000 Sets

Product Description

Product Description 1. Coated Glass-Steel Vaccum Tube used for parabolic trough solar collector
2. Using Kovar make connection
3. 2000mm in length
4. Diameter: 100mm
5. Thickness: 2mm/3mm
6. Temperature can reach: 100~300 Degree centigrade
7. Can produced in large quantity already

Item	Model	Specification
1	Receiver Tube RT-4060	Glass	High Borosilicate Glass
		Steel	SS316
		Outer Diameter and Thickness	φ=125mm/&=3mm
		Inner Diameter and Thickness	φ=70mm / &=2mm
		Length	4060mm
		Working Temperature	400 °C (Oil) or 500 °C (Melton Salt)
2	Receiver Tube RT-2000-125/70	Glass	High Borosilicate Glass
		Steel	SUS304
		Outer Diameter and Thickness	φ=125mm/&=2mm
		Inner Diameter and Thickness	φ=70mm / &=2mm
		Length	2000mm
		Working Temperature	400 °C (Oil) or 500 °C (Melton Salt)
3	Receiver Tube RT-2000-100/40	Glass	High Borosilicate Glass
		Steel	SUS304
		Outer Diameter and Thickness	φ=95mm/&=2mm
		Inner Diameter and Thickness	φ=40mm / &=2mm
		Length	2000mm
		Working Temperature	400 °C (Oil) or 500 °C (Melton Salt)

Detailed Photos
