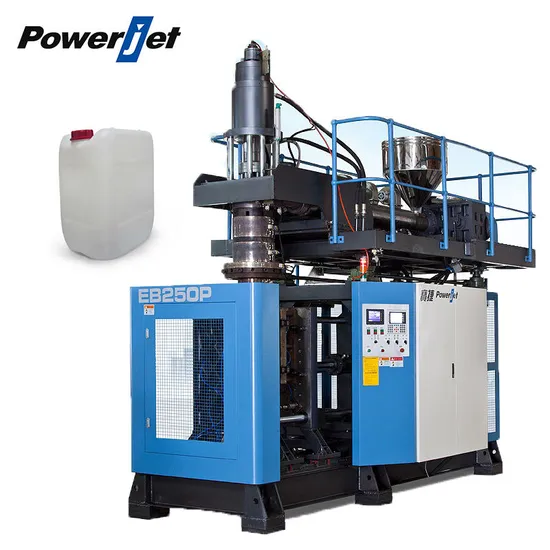

5 Gallon PC 30 Liter 300 Plastic Extrusion Blow Molding Moulding Machine

Product Description

Products Description
Detailed Photos
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle, and platen frame are made in high-intensity nodular cast iron.
3:High-speed mold clamping oil cylinder with differential speed function, and high-speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with a high L/D ratio ensures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die heads can be adopted to improve the quality of the product and lower the cost of material.
6:Multiple-way PID-controlled temperature heating is precise and stable.
Product Parameters

MODEL	UNIT	EB250P	EB500P
Max.Product	L	30	30
Clamping Force	kN	200	400
Screw Diameter	mm	∅85	∅90	∅100
Screw L/D Ratio	L/D	24	25
Screw Rotary Speed	RPM	60	60
Extrusion Weight(HDPE)	kg	120	150	180
Extrusion Motor Power	kW	30	37	55
Pump Motor Power	kW	22	22
Heating Capacity	kW	35	40
Operation Pressure	Mpa	0.6~0.8	0.6~0.8
Air Consumption	m³/min	2.0	2.5
Cooling Water Consumption(25ºC)	L/min	120	150
Machine Dimension (LxWxH)	mm	4700x3500x3400	5300x3400x4250
Machine Weight	kg	9000	11000

Certifications
Packaging & Shipping
Trade Show
Sales & Service Network
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
