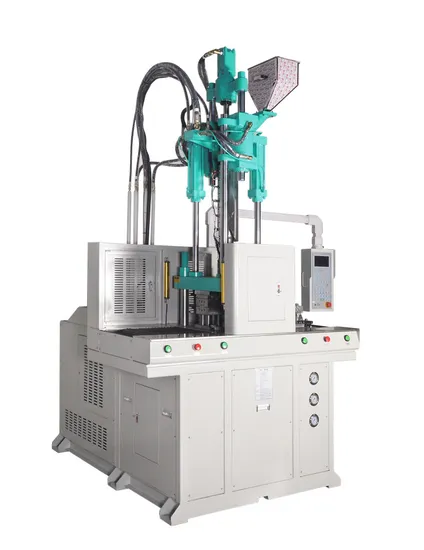

Butter Tube Head Injection Vertical Plastic Injection Molding Machine

Product Description

Product Description Main Features1)Chinese/English LCD display, can memorize 60 groups of mold data. 2)Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor. 3)It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine. 4)Adopting double(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.

Model	Unit	JY-550ST-DM
Screw Barrel Diameter	mm	32	34	42
Injection Pressure	kg/cm2	1642	1385	960
Max. Shot Weight	gram	102	123	176
Max. Shot Weight	cm3/sec	49	59	84
Screw Barrel Route	mm	140
Screw Barrel Rotary Speed	rpm	0-175
Nozzle Contact Force	tons	5.5
Nozzle Retraction Nozzle	mm	210
Number of Temperature Control	pcs	3
Clamping Force	tons	55
Platen Size	mm	900*450
Distance Between Tie Bere	mm	470*280
Min. Mold Height	mm	250/200
Opening Stroke	mm	200
Max. Opening Mold Distance	mm	450/400
Ejetor Force	tons	1.5
Ejetor Stoke	mm	135
Max. Hydraulic Pressure	kg/cm2	140
Pump Output	L/min	40
Oil Resservoir Capacity	Liter	150
Cooling Water Consumption	L/hr	800-1000
Pump Motor Power	kw/hp	7.5/10HP
Barrel Heating Power	kw	4.5
Total Power	kw	12
Machine Weight	tons	3.3
Machine Dimension(LxWxH)	meter	2*1.4*3.3
Shipping Weight	tons	3.6
Shipping Measurements(LxWxH)	meter	2.2*1.5*2.6

Machine ApplicationVertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Our Service Pre-Sales Service* Inquiry and consulting support. * View our Factory.
After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
Packing & Delivery 1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.
FAQ Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

---
