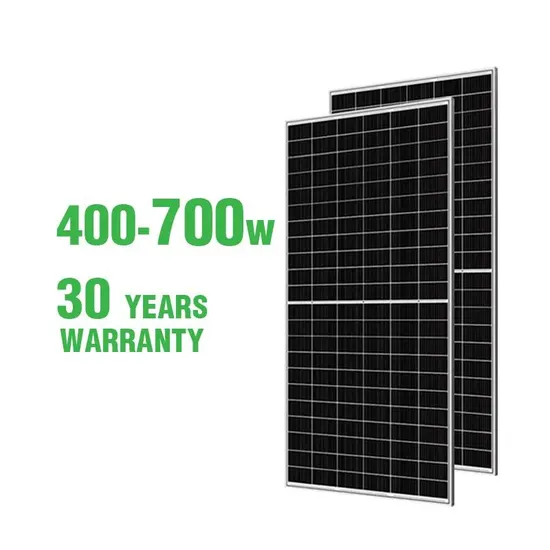

550W Ja Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System

Product Description

550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy SystemProduct Description

Type of Module	NB-550W	NB-560W	NB-575W	NB-580W
Maximum Power	550W	560W	575W	580W
Tolerance	±3%	±3%	±3%	±3%
Open Circuit Voltage	49.65	52	52.6	52.8
Short Circuit Current	14.13	13.34	13.46	13.5
Maximum Power Voltage	40.99	44.23	44.83	45.04
Maximum Power Cuurent	13.42	12.66	12.83	12.88
Module Efficiency	21.3	21.7	22.3	22.5
Solar Cell	Mono PERC 182*91MM
Cell Orientation	144cells
Module Dimensions	2278*1113*35mm/2278*1134*35mm
Weight	28KGS/27.8KGS
Class	High transparency, anti-reflective,tempered solar class
Frame	Silver anodized aluminum alloy
Packing	31pcs/per pallet //36pcs/pallet

GlassAntireflective glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional)Solar CellHigh Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PIDFrameConventional frame
Silver or black frames are optional
Boost bearing capability and prolong service life
Serrated-clip design tensile strength
Seal-lip designglue injection
Junction boxConventional standalone edition and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Half Cell module technology
By using half a battery, the current in each busbar is halved. The internal loss in a half cut module is 1/4 that of a full size battery module.Less Shading Loss
Shading loss of half-cell is much better than normal module in certain shading conditions.Half-cell technology
The Half-Cell design ensures improved coloring response, resulting in higher yields when partially coloring modules. Under certain shading conditions, semi battery modules experience much better shading losses than traditional modules.
Low Working TemperatureHalf cell module reduced by about 2 degrees
Company Profile
Jiangsu autex construction group is a collectivized enterprise integrating design, production and construction.
The group has six subsidiaries: jiangsu autex transportation equipment co., LTD., jiangsu autex lighting engineering co., LTD., jiangsu autex landscape engineering co., LTD., jiangsu autex electric power engineering co., LTD., jiangsu autex intelligent technology co., LTD., jiangsu autex design co., LTD.
The group's main products: street lights, smart street lights, traffic lights, traffic guardrail, traffic signs, electronic police, bus shelter, photovoltaic modules, lithium batteries, road lamp poles, LED light source, wire and cable production and sales.
The group has more than 20 construction and design qualifications. More than 50 professional project managers.
Every Autex person will be in good faith, professional, high quality, high efficiency as the criterion, make every effort. The group is willing to work with people of insight from all walks of life hand in hand, win-win cooperation, create brilliant
Jiangsu autex construction group is a collectivized enterprise integrating design, production and construction.

Q: What is a photovoltaic (PV) system design?
A: Photovoltaic (PV) system design refers to the process of determining the components and specifications needed for a solar
energy system that meets specific energy needs and requirements.
Q: What are the factors to consider when designing a PV system?
A: The factors to consider when designing a PV system include location, shading, orientation, slope, electricity consumption, budget,
and local regulations.
Q: How do I determine the size of a PV system?
A: The size of a PV system can be determined by considering the energy consumption, the amount of available space for panels, and
the budget for the system.
Q: What is the difference between a grid-tied and an off-grid PV system?
A: A grid-tied PV system is connected to the main electricity grid and sends excess energy generated back to the grid. An off-grid PV
system is a standalone system that is not connected to the main electricity grid and stores energy in batteries for later use.
Q: What is the impact of shading on a PV system?
A: Shading can significantly impact the performance of a PV system by reducing the amount of sunlight reaching the panels. Proper
design and positioning of panels can help minimize the impact of shading.

---
