Semi Automatic Stitch for Carton Machine Packaging Machine

Product Description

BDJ_2000()

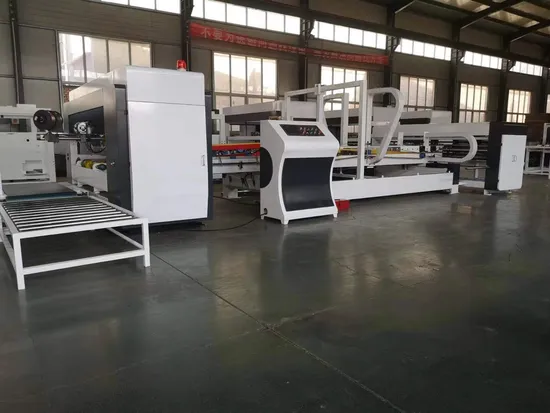

BDJ-2000Model high speed semi automatic stitching machine(double servo drive)
Functions and features:
//(),;
Capable for single/double/strengthen nailing(both ends are double nailing,middle part is single nailing) can be complete one time,suitable for different demands for different customers.
,;
Box size and box nailing distance can be complete adjusting within one minute,obviously saving time and easy operation.
();
Cab nailing both covered and uncovered box(explain when ordering the machine if there is no cover to be nailed)
,,
,(1-99),;
The front end paper feeding part has auto counting device,feeding table is equipped with photoelectric induction device,rising automatically when feeding paper.
The rear section has automatic counting function,and the finished products tension number can be stacked to the end of the conveying machinery according to the set quantity(1-99)for convenient packing and binding.
:600/;,()
Mechanical speed:600 nails/min;suitable for 3/5 ply(state before ordering if has 7ply orders)
Machine head specifications:
,;
The whole group of the nailing head is made of imported mold steel from Japan and processed with high precision computer machining;
,();
Head blade and low mold are made of German tungsten steel(wear resistance)

Single stitching machine electric components

No.	Name	Brand
1	Servo	Japanese Yaskawa
2	Reducer	Taiwan LiMing
3	PLC	Delta
4	Touch screen	WeinView
5	Power switch	schneide
6	Protector	schneide
7	Contactor	schneide
8	Thermal protector	schneide
9	Intermediate relay	schneide
10	Terminal board	CHNT
11	Breaker	schneide
12	Approach switch	Omron
13	Photoelectric switch	Omron
14	Button switch	schneide
100%,. ,,. The above devices are 100% genuine devices, to eliminate fake and shoddy. The brand changes and not affect quality without notice.

2000:
2000 Model specifications:Drive part electric components ,,,. Japanese Yaskawa double servo drive,high precision and reduce mechanical parts,can effectively reduce mechanical failures. ,,,,,,,Plc.. WEINVIEW touch screen operation,parameters,nailing distance,nailing numbers,nailing types,rear baffle can be adjusted conveniently,whole control system adopts Japanese Omron PLC control system.Rear electric baffle adopts stepping motor drive. ,. The photoelectric switch adopts delta brand,approach switch adopts Omron brand. . Power switch adopt France Schneide brand. ,. Protector,contactor and thermal protector adopt Schneide brand. . Intermediate relay adopt Schneide. . Button switch Schneide brand.
.,,,.,,,,40,,,,,.SKD11,.,,..
The bearings used in this machine is HRB. This machine is a synchronous belt drive, small noise, small error, synchronous belt synchronous wheel is produced in Foshan, Guangdong. The machine head part slide adopts the ball grinding iron high frequency quenching modulation, active gear, driven gear, wire wheel, pressure wheel of 40 CrMnTi material, through quality adjustment, quenching, fine grinding, nitride treatment, high fine grinding degree. The punch is made of SKD11 imported from Japan, and the nail mold is made of imported tungsten steel. Small parts are molded into fine grinding, with high precision and small error. The motor adopts Shanghai Ote.
LK.(,)
The bearing tile box is Fujian Quanzhou LK brand. (The above parts are subject to changes but not affecting the quality of the machine without notice)
,,,,,,.
The general motor and gear reducer used in the machine are a well-known brand from southern China, with non-free connection, high precision, small noise, small error and long life.

(A+B)x2 Max. size(A+B)x2	3800mm	A Min. Length A	250mm
(A+Bx2 Min size(A+Bx2	740mm	D Max. Length D	2000mm
(C+D+C) Max. size(C+D+C)	3000mm	D Min. Length D	150mm
(C+D+C) Min. Size (C+D+C)	250mm	E Max. Nailing tongue width E	40mm
C Min. shaker cover C	50mm	Max. Feeding width	900mm
C Max. Shaker cover C	560mm	Machine width	2850mm
B Max. Width B	850mm	(T) Machine weight(T)	2
B Min. Width B	150mm	(/) Machine speed(nail/min)	600
A Max. Length A	1140mm	Nailing number	1-99

---
