CNC Stone Hsd 5 Axis Router for Hard Granite Marble

Product Description

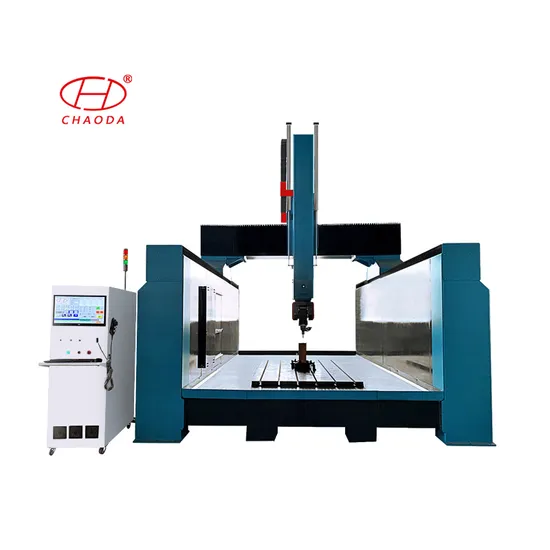

JC-5AXIS cnc stone machine hsd 5 axis router carver for hard granite marble routing

All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining.

Model No.	JCS1325-5AXIS
X,Y,Z,A,C working size	1300*2500*1000mm* ±120°* ±245°
Whole structure	heavy duty steel wall structure
Table surface	T-slot with clamps
Spindle	13.5KW ATC spindle, cooled by liquid
Tool magazine	Linear type automatic tool changer, with 8pcs tool magazine
Driving system	Japan YASKAWA servo motor and driver
Inverter	Delta
Operating system	5 axis Syntec
Operation language	G code
Working voltage	AC380V, 3-phase, 50Hz
Running environment	Temperature: 0ºC-45ºC; Relative humidity:30%-75%

2D engraving, 3D engraving, line engraving, cutting, edge inversing, drilling on Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone,
Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, glass, plexiglass, wood, pvc, eps foam, aluminum composite panel, aluminum block, copper and so on.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas

---
