Metal Product Processing Machine C5125 Heavy Duty Vertical Lathe China Made Vertical Turning Lathe

US$55,000.00
1-4 Set
US$53,000.00
5+ Set

Basic Info.

Model NO.
C5125
Type
Vertical Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Cutting Dia.
2500mm
Working Table Dia.
2250mm
Max Loading
8t
Speed Range
2-63rpm
Step Range
16 Steps
Max. Torque
35kN.M
Feeding Range
0.8-86mm/Min
Feed Steps
12 Steps
Cutting Force
25kN
Vertical Travel
1000mm
Horizontal Travel
1500
Tool Bar Section Size
40*40mm
Feed Motor Power
1.3/1.8kw
Main Motor
37kw
Machine Weight
26/28t
Transport Package
Wooden Cases
Specification
3300*4000*3500mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
350.00cm * 430.00cm * 380.00cm
Package Gross Weight
29000.000kg

Product Description

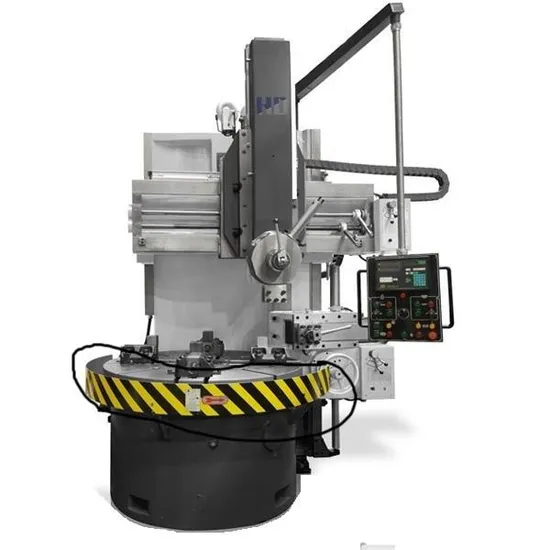

Product Picture
Specification Parameter
Specification Unit C5112 C5116 C5120 C5123 C5125
Max.cutting diameter of vertical tool post mm 1250 1600 2000 2300 2500
Max.cutting diameter of side tool post mm 1100 1400 1800 2000 2400
Max.cutting height mm 1000 1000/1200/1400 1250 1350 1600
Workingtable diameter mm 1000 1400 1800 2000 2250
max. loading t 3.2 5 8 8 10
speed range rpm 6.3-200 5-160 3.2-100 3.2-100 2-63
step range step 16 16 16 16 16
max. torque kn. m 17.5 25 25 25 35
Vertical turret feeding rang mm/min 0.8-86 0.8-86 0.8-86 0.8-86 0.8-86
feed steps step 12 12 12 12 12
cutting force kn 20 25 25 25 25
vertical travel mm 650 800/1000 800/1000 800/1000 1000
horizontal travel mm 700 915 1200 1300 1500
swing angle ° ±30 ±30 ±30 ±30 ±30
Side turret feed range mm/min 0.8-86 0.8-86 0.8-86 0.8-86 0.8-86
cutting force kn 20 20 20 20 20
vertical travel mm 900 900 900 900 900
horizontal travel mm 630 630 630 630 630
Vertical (side) turret rapid travel speed m/min 1.8 1.8 1.55 1.55 1.55
Cross beam travel mm 650 650/850/1050 850 1050 1250
Beam lifting speed mm/min 350 350 350 350 320
Tool bar section size mm 30*40 30*40 40*40 40*40 40*40
Feed motor power kw 1.3/1.8 1.3/1.8 1.3/1.8 1.3/1.8 1.3/1.8
Main motor kw 22 30 30 30 37
Machine weight t 8.5 12.4/14/14.8 17 18 26/28
Overall dimension(L*W*H) mm 2360*2280*2800 2830*2670*3010 3200*2800*3250 3210*2850*3300 3300*4000*3500
