CE ISO9001 Aluminium Monoblock Casement Sliding Window with Electric Manual Roller Shutter

US$80.00-160.00 1 Piece (MOQ)

Basic Info.

Model NO.
TMAM
Material
Aluminum Alloy
Open Style
Sliding
Frame Material
Aluminum Alloy
Screen Netting Material
Nylon
Style
Modern
Opening Pattern
Vertical
Function
Heat Insulation, Soundproof, Anti-Theft, Airproof, Insect-proof, Dust-proof, Invisible
Surface Finishing
Finished
Security Rating
A
Customized
Custom Sizes
Hardware
German Roto, Kinlong, Yaer
Glass
Single Layer, Double Layer, Tripe Layer
Glass Coating
Low-E, Solar Reflective, Clear
Color
White, Black, Darkly Grey, Brown
Transport Package
Plastic Film and Compreg Case
Specification
55 77 80 90 110 120 190 series
Trademark
TOMA
Origin
Shanghai, China
HS Code
76101000
Production Capacity
30000set/Month

Product Description

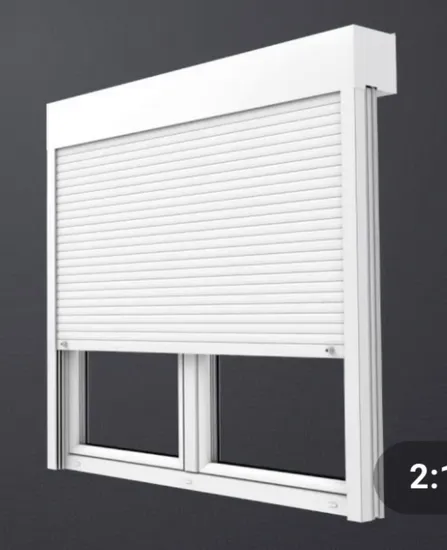

CE ISO9001 aluminium monoblock casement sliding window with electric manual roller shutter
1Aluminium casement window, roller shutter and mosquito net
2Aluminium sliding window, roller shutter and mosquito net Your advantages:
Heat lnsulation+Soundproofing+Visual cover+Weather protection+Safety+Design+Multi functionality
1. Fuel economization
TOMA monoblock solution will save energy, in comparison to a lintel box since no thermal bridge occurs between shutter element and inner room.
2. Optimal heat protection with roller shutters Closed
Between window and shutter curtain there will develop a strong insulating air cushion. The insulation of a heat insulated window panel will increase by 20%.
3. High soundproofing values
Optimal soundproofing, tested in many laboratory experiments. lf the inside is plastered of equipped with additional insertions soundproofing values (Rw) of up to 42dB will be possible.
4. Additional soundproofing through closed roller shutters
Aluminum panels are filled with sound absorbing foam-material and lower the noise level extremely. This gives you a restful night of sleep and higher concentration and efficiency
during the day.
5. Protection of curious glimpsesv
Enjoy undisturbed protection in your house. By means of group control you can either open or close all roller shutters automatically or by pushing a button.
6. Protection from good or bad weather
Rain, snow and hail as well as strong solar radiation will be kept away by roller shutter curtains made of aluminium slats. Enjoy a cool, shady room even at midsummer. By photo
sensor all roller shutters will be closed or opened automatically.
7. The Approach sensors
The area in front of the window will be guarded by these sensors and will start up the shutters after 10 seconds should there be a person. Should this person not be discouraged and should not leave the area the roller shutter curtain will close completely.
8. Presence-Simulation with timer
The programmable timer opens and closes your roller shutters while you are away even at sporadic intervals and pretends an occupied home.
9. Security package as effective protection against burglars (optional)
TOMA does not make it easy for burglars. Shutter systems with aluminum roller shutter curtains are very safe. The TOMA-Security Package with reinforced bottom panel, concealed bolted guiding rails and the push-up protection are hard to break through. You will receive a proven system with the security package at a reasonable price.
10. Wooden windows and floors need special protection
Climatic conditions can be detected at wooden windows and floors. Wooden windows have to be painted often at the weather side and have tobe replaced after a few years. Parquet and laminate flooring will bleach near the window area within a few years and should be protected.
11. Mosquito proof
You will be free of mosquito etc and enjoy yourlife.
Technical data:
Wind resistance: Class 3
Air tightness: Class 5
Water tightness: Class 4
Sound insulation: Rw=40~44db
Mullion: thickness of aluminium profile>1.4mm,overall thickness 130mm
thickness of aluminium profile>1.4mm,overall thickness 55mm
thickness of aluminium profile>1.4mm,overall thickness 65mm
Sash stuff: Heat insulation bar nylonPA66, 25% fiber glass reinforced
