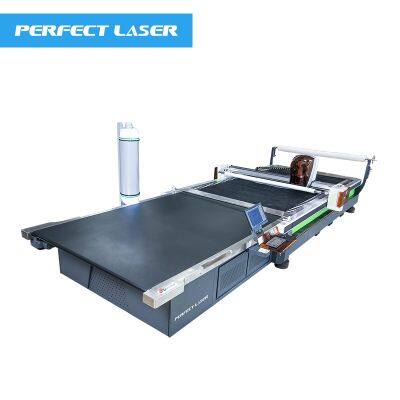

Industrial CNC Fabric Cutter Machine For Automatic Cloth Cutting

Product Details

Product Details

Product Description

Product Description
Features:
1. The type-setting system is designed by computer, and it can be automatically combined with the computer to improve the efficiency of type-setting, high degree of automation and simple operation. Any common user can master this type-setting technique only if they can operate the computer;
2. The industrial fabric cutter can realize zero-distance cutting, which effectively saves raw materials; Computer controlled automatic cutting, instead of a large number of cutting workers, to achieve mass production;
3. The cutting precision of the industrial fabric cutter is high, the lathe can directly sew the seam without trimming the pieces, greatly improving the sewing efficiency of the lathe;
4. The industrial fabric cutter control software supports multi-source data format, and can directly receive common-used clothing design and type-setting software;
5. Unique calculating and motion controlling technology, realize the seamless connection of straight line and arc, so the cutting precision is high;
6. The cnc fabric cutter adopts automatic knife-sharpening technology, and the grinding time can be designed according to the characteristics of the fabric, which effectively extends the service life of the cutting knife;
7. New high-efficiency energy-saving pump design to reduce equipment noise. In the same performance situation, this cnc fabric cutter can reduce more power and save energy.
8. Adopts long-life mane brick cutting platform design, the cutting knife can penetrate the surface without damage;
For picking area, the conveyors can be operated independently or synchronously.
Tags: automatic cloth cutting machine, industrial fabric cutter, cnc fabric cutter
Technical Data:
Model
PE-B2033 automatic cloth cutting machine
Effective cutting width (mm)
2000
Effective cutting length (mm)
3300
Fabric cutting thickness
(after vacuum adsorption) (mm)
70 mm
Cutting method
Knife repeating up and down cutting
Cutting speed (mm/min)
15-40 m/min
Machine running speed (mm/min)
50-60000 mm/min
Set speed error (%)
≤±5%
Cutting accuracy
≤±1.0 mm
Repeat Accuracy
0.5 mm
Machine Draw-line accuracy
≤0.5 mm
Working temperature
0℃-50℃
Relative humidity
<90%, without condensation
Surrounding environment
Ventilation, no big impact
Power Supply
220V / 380V±10%
Power frequency
50Hz
Input power
<30KW
Grounding type
Concentrated direct type
Gas pressure
0.35Mpa 160L/min
Equipment can be customized accordingly for the size and movement, weight and dimensions
