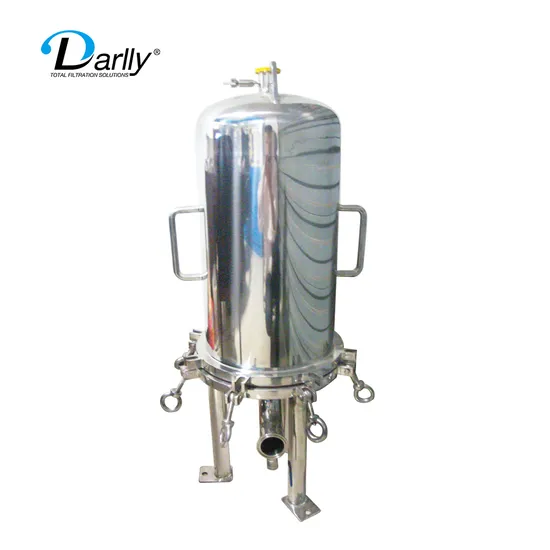

Sanitary Stainless Steel Filter Housing for 12inch and 16inch Modules Food, Beverage and Chemical Industry Filtration

Product Description

BDS-H Series Lenticular Filter Housing is a new type of stacks filter, can be used in place of diatomite filter, for tiny impurities in varied kinds of liquid filtration, clarification, purification. The structure is designed and manufactured according to sanitary requirements, the well-polished housing leaves no residual liquids and has an easy throughtput for cleaning, it is available for both 12" and 16" diameter filter modules, which can install 4 filter stacks meet high flow rates requirements.
Applications
· Pharmaceutical
· Chemical
· Food and Beverage
· Dewaxing
· Research & Development
Features
· Housing accommodate one to four 12",16" standard cartridge
· Sanitary design for easy cleaning, the inlet/outlet can be configured special discharge valve, easy to drain
· Easy to replace the filter stacks, reduce the filter medium leakageTechnical Specification

Connenction of shell	Flange
N1,N2 In-outlet	Flange, Tri-clamp, Thread
N3 Pressure gauge (option)	1.5" Tri-clamp
N4 Drain valve (option)	1" Tri-clamp
N5 Vent valve (option)	1/2" Tri-clamp
Finish type	Mechanical
Polishing precision	0.3μm Inner surface Ra≤0.6μm
	0.4μm Outside surface Ra≤0.8μm
Max Operating pressure	0.6Mpa
Max Operating temperature	150°C
Online or steam sterilization	121°C / 30min

Ordering Information
About Us
We are the pioneer and leading manufacturer for filter industry. Over the past 25 years, Darlly has grown from 4 employees to more than 500 employees. We have US and EU R&D center and warehouses. We focus on technology innovation and devote to supply best eco-friendly filtration solutions to all the industries. Based on comprehensive process knowledge, we provide variety of standard filter products, not only supply standard filtration products for customer's selection, but also design and customize according to customer's requirements. We are a high-tech company focusing on quality with competitive price.Filtering everything is our mission, let's work together to make the world cleaner.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our 25 years experiences in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course if you can provide us detailed specifications or drawings. Our mission is to make customer's idea on the products and to provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 500 PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7 working days for off-the-shelf samples and 20-25 days for bulk production.
8. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14000/OHSAS18000 certified. We have NSF, CE, Halal etc certificate for the products we are manufacturing.
9. Q: How should I place an order?
A: Please kindly click" Contact now" or "Chat with supplier", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
10. Q: Since you are famous, can I be your agent?
A: Welcome to join us, we are happy to have a further discussion with you. Let's work together to make the world cleaner, safer and more productive.

---
