Factory sell taper candle machine/ spiral candle making machine/ machine for pillar candles
Candles making process:
1. Put the raw material of paraffin wax pot to wax melting machine.
2. In the candle wick into candle machine mould.
3. Pour the melted paraffin oil into the candle machine mold.
4. After cooling, take out the finished candles from candle machine mold.
5. To carry on the exterior decoration, finishing packaging products.
1. Wax melting machine
1.Wax melting machine consists of three layer (inner stainless steel board, heat-conducting layer and insulating course),
2.Electric hot tube heating the conduction oil and melt paraffin wax with the heat of conduction oil. Change the solid wax into liquid wax before making the candle.
3.There are temperature controller, indicator light, AC contactor and wax temperature sensor or temperature automation.
Model
| Volume
(kg)
| Voltage
(v)
| Motor (kw)
| Inside size (cm)
| Dimension(cm)
| Weight
(kg)
|
JXR-50
| 50
| 380/220
| 6
| 50×38×44
| 92×65×78
| 110
|
JXR-100
| 100
| 380/220
| 8
| 75×45×48
| 117×70×83
| 145
|
JXR-150
| 150
| 380/220
| 9
| 90×49×50
| 140×74×85
| 160
|
JXR-200
| 200
| 380/220
| 10
| 100×55×60
| 151×75×87
| 185
|

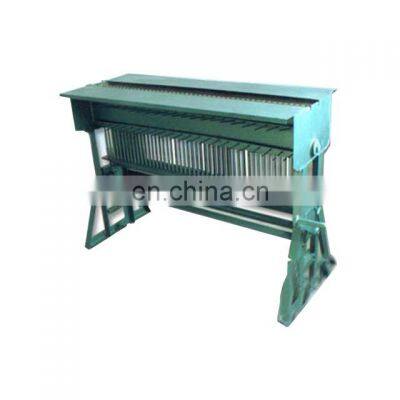

2. taper candle machine/ spiral candle making machine/ machine for pillar candles
1.We usually manufacture candle machine according to our customers’s requirement,
these years mainly produce 2 lines to 10 lines wax models tube.
2.The candle with the mold clamp unit clamp wax in aluminum alloy plate.
3.The machine province labor, high efficiency, skilled workers each operation 4 -8 sets of candle machine at the same time.
4.The candle machineclamp unit choose aluminum alloy manufacture, wax models tube using
seamless stainless steel tube after strench forming, polishing refined but become, have the best surface finish, anti-corrosive, cooling fast, good sealing performance
Model
| Capacity
| One piece candle weight
| The dia. Of candle
| Weight
|
JX-2-A
| 56pcs/time
300-350pcs/h
| 5-100g
| 8-28mm
| 85kg
|
JX-2-B
| 80pcs/time
550-600pcs/h
| 5-100g
| 8-28mm
| 96kg
|
JX-4-B
| 160pcs/time
950-1000pcs/h
| 5-100g
| 8-28mm
| 150kg
|
JX-6-C
| 240pcs/time
1200-1400pcs/h
| 5-100g
| 8-28mm
| 200kg
|
JX-10-D
| 400pcs/time
1800-2400pcs/h
| 5-100g
| 8-28mm
| 220kg
|
My friend, if you have any special requirement about our wax melting machines, taper candle machine/ spiral candle making machine/ machine for pillar candles, pls tell us, we welcome
you and manufacture machines according to your required.
