US$9,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.

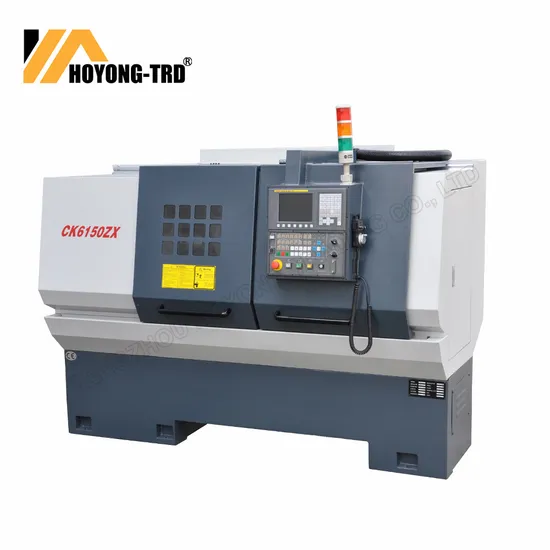

CK6140ZX CK6146ZX CK6150ZX
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Swing Over Bed
400mm,460mm,500mm
Swing Over Cross Slide
180mm,250mm
Max. Turning Length
750/1000/1500mm
Spindle Speed
100-2000rpm
Transport Package
Plywood Case
Product Description
PRODUCT FEATURES:
Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
The spindle bore size is Ø 80mm. The spindle system is high in the rigidity and accuracy.
SPECIFICATIONS:
| ITEMS | CK6140ZX | CK6146ZX | CK6150ZX |
| Over bed | Ø400mm | Ø460mm | Ø500mm |
| Over carriage | Ø210/Ø165mm (Gang tools) | Ø240/Ø205mm (Gang tools) | Ø280/Ø245mm (Gang tools) |
| Maximum turned length | 750/1000/1500mm |
| Max. turning length | 600/850/1350 mm |
| Spindle nose | D8 |
| Spindle bore | Ø80mm |
| Cone hole diameter and taper of spindle hole | MT.No7 |
| Steps of spindle speed (Manual) | Variable |
| Range of spindle speed | 100~2000r/min |
| Rapid feed for Axis Z | 10m/min |
| Rapid feed for Axis X | 8 m/min |
| Max. travel of Axis Z | 710/960/1460 mm |
| Max. travel of Axis X | 250/330mm(Gang tools) |
| Min. input | 0.001mm |
| Tool post stations | 4-ways or 6-ways or gang tools |
| Tool cross section | 25×25 mm |
| External diameter | Ø75mm |
| Taper of bore | MT.No.4 | MT.No.5 |
| Max. Traverse | 130mm |
| Power of main motor | 5.5KW(Extra 7.5KW) |
| Power of cooling pump | 75W |
| Overall dimensions(L×W×H) | 2060/2310/2790×1180×1500mm |
| Net weight | 2100,2250,2800Kg | 2200,2350,2900kg |
>>
