Automatic Arc Carriage Pulse Connect MIG Butt Welder Steel Plates Welding Machine

Product Description

Product Description
220v 200amp automatic arc carriage pulse mig welder welding machine

Introduction of the Products:

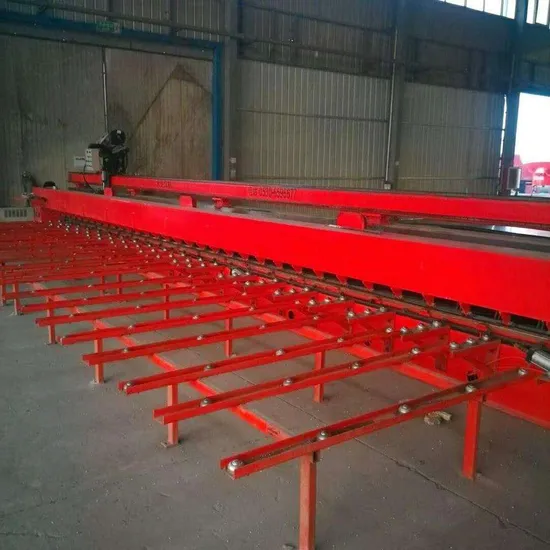

The automatic flat butt welding machine uses the cylinder keyboard, pressing the two boards on the special designed groove and the torch equipped with the water-coolant moving linearly welds the boards tighter.
The machine includes a long bench, a key compact device, a beam, a platform, a central orientation device, a pipe assembly and a welding cart. With the wire-feeder, the welding generator and the gas pipe can finish the welding work. The bench is strong enough to endure the compact pressure. The cylinder keyboard compacts the board equally. The welding speed is controlled by the DC motor, fulfilling the stepless adjustment and convenient operation.

To ensure that the steel is flat, the seam can be welded for one side or for both sides. There is no minimal deformation. There are clean and beautiful seam on both sides, round and smooth transfers. The deviation on the back side is no larger than ±0.5mm, with the obverse no larger than 2mm and the reverse side 1mm. The width of the welding seam is 5-12mm

The Technical Statistics

The Welding Length(can be customized)	9500mm	The Adjustment of the Welding Speed	The Stepless Adjustment
The Welding Metal Base	Q235A,16Mn,SUS304	The Welding Speed	100-1500mm/min
The Thickness of the Metal Base	3-8mm	The Operation Precision of the Welding Torch	The Welding Torch can be Adjusted by Hand or Electromotion
The Pressure of the Pneumatic System	0.4-0.8MPa	The Effect of the Welding Seam	One-Side is Welded; Two Sides are Shaped.
The Way of Pressing the Work Piece	The Cylinder Keyboard Pressed	The Dead Weight	20ton

Packaging & Shipping
How to pack and load the corrugated welding machine?
Click here for more information!!!

Company Information
About Us:
Qingdao Yijiaan Industry And Trade Co.,Ltd is a modern enterprise specialized in manufacturing cutting and welding machine since 2008 , locatedin Jimo,Qingdao city,near the Qingdao Port and Qingdao Airport,which bring us convenient transportation.
We are focusing on supplying high quality products and good service to our custom, the main products are tank welding machine,h beam welding machine,trailer welding machine,cutting machine,butt welding machine etc,which is famous in the market now.
Our company has advanced equipment, completed process,competitive design,high quality control,reasonable price and strict delivery date to meet your different requirements.our products have exported to more than 200 countries and regions,such as America,Europe,Korea,Japan,Russia etc, our "QITE" brand have accepted by customers all over the world.
If you are interested in more details about our company and products, please don't hesitate to contact us anytime. It is our great honor to be on service of you all the time.

More products:
1.WELDING MACHING
2.PRESS MACHINE3.cutting machine and rolling machine

Click here for more information!!!
FAQ
FAQ:
Y.Are you manufacture or trade company ?
M:We are professional manufacturer of many kinds welding and cutting machine.

Y:How to package?
M:Frist layer, covered by plastic film for waterproof,second layer:covered by foam to protect the machine from shaking ,third layer:steel craft case or wooden cases.

Y:Will the package strong enough?
M:Our package is strong enough,nearly all our machine is packed in this way,and the customers receive in good state,So please don't worry,you will receive the welding machine in good condition.,but also can package as your requirement.

Y:How can you guarantee the quality of welding machine?
M: we have passed the ISO test,and if you have time,you can come to our factory to check the machine before order .and we have one year guaranteed,free parts can be send free within one year.


Y:How to install and operate the machine?
M:1.the machine is installed by us before send out,you need to install some parts according to the vedio and manual we send to you.
2.engineer can come to your side to install for you if need
3.install and operate training can be offer in our factory or in your side.

Y:What can I to do if the machine have problem?
M:please contact us at the frist time,and don't repair in your side,we will tell you how to solve it after discuss,we can guaranteed to solve within 24h if not the part break.

Y:how is your after-sale customer service?
M:you can contact our sales manager if have any question,we are online everyday.

Y.How to place an order?
M:1). Tell us the welding material ,welding size ,welding thickness...etc ,the more detailed the better .
2). After view your requirement ,we offer best plan and quotation .
3). Price confirmed ,we can proceed order and arrange shipment to your country.
