Welcome to visit

High Efficiency Best Quality Fishing Net Machine

Negotiable 1 set (MOQ)

Basic Info.

Model NO.
ZRD25.4-270X
Condition
New
Certification
CE
Automatic Grade
Automatic
Precision
High Precision
Voltage
380V
Applicable Material
PE,Rope
Type
Weaving Machinery
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
CNM
Origin
China
HS Code
84479000
Production Capacity
30 Sets Per Month

Product Description

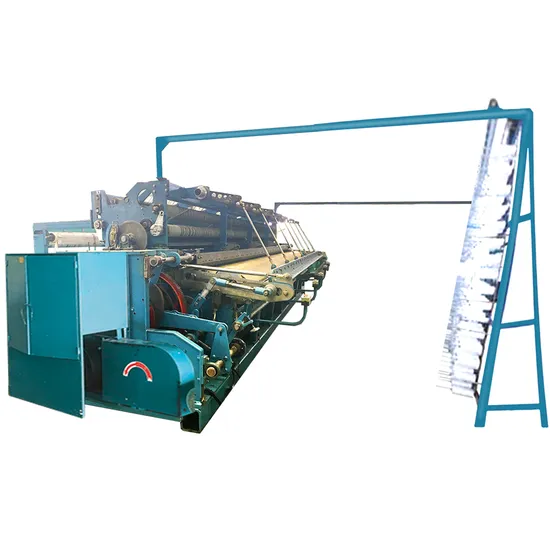

Fishing net machine
1 High-speed operation, high efficiency
2 Big spool, large amount of weft twine
Model ZRD19-270X ZRD21-230X ZRD25.4-210X ZRD28.25-185X ZRD32-160X ZRD35-150X ZRD38-138X
Knot type D D D D D D D
Pitch (mm) 19 21 25.4 28.25 32 35 38
Width(number of meshes) 270 230 210 185 160 150 138
Spool diameter (mm) 300 300 300 300 300 300 300
Twine applicable Nylon monofilament(mm) 0.5-0.9 0.52-1.0 0.6-1.2 0.7-1.4 0.7-1.5 0.7-1.6 0.8-1.8
Nylon monofilament(mm)(mm) S 210/21-72 210/24-105 210/27-126 210/42-147 210/48-168 210/60-273 210/150-546
Nylon monofilament(mm)(mm) D 210/21-36 210/24-51 210/27-63 210/42-72 210/48-84 210/60-135 210/150-273
PE twine denier/ply S 380/15-33 380/15-45 380/18-57 380/21-72 380/24-93 380/33-126 380/80-162
PE twine denier/ply D 380/15 380/15-21 380/18-27 380/21-36 380/24-45 380/33-63 380/80-380/231
Mesh size (mm) 30-300 33-300 40-300 48-300 52-300 58-300 380/80-81
Rotative velocity (r/min) 14-18 14-18 14-16 11-15 11-14 11-15 11-15
Motor power (kw) 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Outline size Length (mm) 8193 8080 8384 8270 8193 6892 6892
Width (mm) 4220 4220 4220 4220 4220 4220 4220
Heigth (mm) 2305 2305 2305 2305 2305 2305 2305
Weight (KG) 17800 17000 18000 18000 17800 11800 11800
