9m Aluminium Alloy Lift Platform Mobile Hydraulic Lift

Product Description

CE approved hydraulic lift trailers aluminum goods lift


Product Description
1.Introduction:

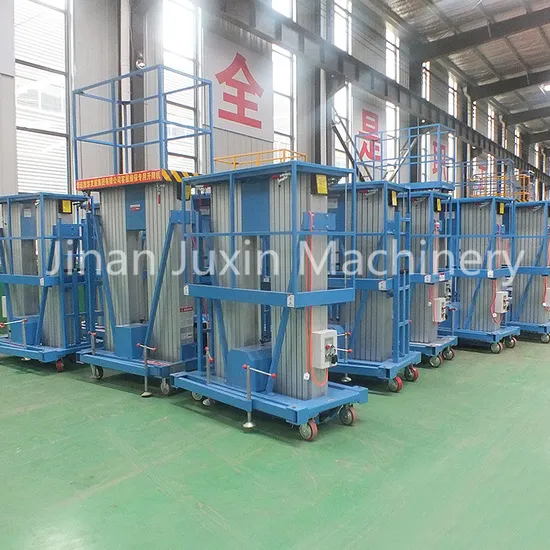

A. Vertical aluminum Lifts are made up of high grade aluminum profile.
B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 200kg.The power sources could be 110,220V,380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.
2.Advantages:
A.The Lift is light weight, good flexibility, and suitable for two people to operate.
B. Beautiful structure, light weight.
C.Compact structure, small size transport state, can enter narrow and small area.
D.Safety protection device and imported pump, increases the service life and safety assurance.
3.Safety precautions:
A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
C. Emergency decline valve: it can go down when you meet an emergency.
4.Power Supply & Applicable place:
A. Electric Powered / AC powered
· When the electricity is available at work place, usually for Indoor use
· No noise and air pollution
B. Battery Powered / DC powered
· When the electricity is not available at work place, usually for Outdoor use
· No noise and air pollution

Mast	Model	Platform height(m)	Load capacity(kg)	Platform size(m)	Supply voltage(v/hz)	Power(kw)	Weight(kg)	Shape Size(m)
Single	YBC4-100	4	100	0.60*0.60	AC220/50HZ	0.75	250	1.28*0.80.1.75
	YBC6-100	6	100	0.60*0.60	AC220/50HZ	0.75	280	1.28*0.80*1.90
	YBC8-100	8	100	0.60*0.60	AC220/50HZ	0.75	300	1.28*0.80*1.98
	YBC9-100	9	100	0.60*0.60	AC220/50HZ	1.1	320	1.36*0.90*2.00
	YBC10-100	10	100	0.60*0.60	AC220/50HZ	1.1	340	1.36*0.90*2.10
Double	YBC6-200S	6	200	1.10*0.60	AC220/50HZ	1.5	420	1.30*0.90*1.90
	YBC8-200S	8	200	1.15*0.60	AC220/50HZ	1.5	550	1.36*0.90*2.00
	YBC10-200S	10	200	1.35*0.60	AC220/50HZ	1.5	600	1.56*0.97*1.90
	YBC12-200S	12	200	1.45*0.60	AC220/50HZ	1.5	700	1.66*0.97*2.00
	YBC14-200S	14	200	1.45*0.60	AC220/50HZ	1.5	800	1.66*1.10*2.35
Three	YBC10-320	10	200	1.57*0.90	AC220/50HZ	2.2	900	1.85*1.25*2.00
	YBC12-320	12	200	1.57*0.90	AC220/50HZ	2.2	900	1.85*1.25*2.00
	YBC14-320	14	200	1.57*0.90	AC220/50HZ	2.2	1000	2.10*1.25*2.35
	YBC16-320	16	200	1.57*0.90	AC220/50HZ	2.2	1000	2.10*1.25*2.65
Four	YBC10-420	10	200	1.47*0.85	AC220/50HZ	2.2	1100	2.0*1.25*1.90
	YBC12-420	12	200	1.57*0.90	AC220/50HZ	2.2	1200	2.10*1.25*2.00
	YBC14-420	14	200	1.57*0.90	AC220/50HZ	2.2	1300	2.10*1.25*2.35
	YBC16-420	16	200	1.57*0.90	AC220/50HZ	2.2	1500	2.10*1.25*2.65
	YBC18-420	18	200	1.57*0.90	AC220/50HZ	2.2	1700	2.10*1.35*2.90
Six	YBC18-620	18	150	1.50.*0.90	AC220/50HZ	2.2/1.1	1700	2.50*1.60*2.45
	YBC20-620	20	150	1.50*0.90	AC220/50HZ	2.2/1.1	1800	2.50*1.60*2.45
	YBC22-620	22	150	1.50*0.90	AC220/50HZ	2.2/1.1	1900	2.50*1.60*2.70
	YBC24-620	24	150	1.50*0.90	AC220/50HZ	2.2/1.1	2000	2.50*1.60*2.85
Lay down	YBCF14-200S	14	200	1.45*0.90	AC220/50HZ	1.5	1700	3.10*1.45*1.99
	YBCF16-200S	16	200	1.45*0.90	AC220/50HZ	2.2	1900	3.30*1.45*2.18
	YBCF18-200S	18	200	1.50*0.90	AC220/50HZ	2.2	2400	3.30*1.45*2.20
	YBCF20-200S	20	200	1.50*0.90	AC220/50HZ	2.2	2600	3.80*1.45*2.30

Company Information
FAQ
1.How long will you make it?
Within 7-15 working days after we get your payment.
2.What kind of payment do you support?
T/T,L/C,it has different term of payment,other kinds,please contact us.
3.What is the MOQ?
Generally speaking,the MOQ is 1 set.Different products have different MOQ.More quality,better price.Please contact with us.
4.What is the application filed for it?
Construction,shipyard,industrial,airport,municipal garden or other places.
5.What kind of the trade term will you accept?
FOB/CIF to your nearest seaport.

---
