Factory Supply! 5 Axes CNC Router / 5 Axis Portal Milling Machine for Block Foam

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
JC1530-5AXIS
Spindle Number
Single-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE, BV, TUV
Customized
Customized
Condition
New
Color
Customized
Model
5 Axis CNC Machine
Applications
Wood, EPS Foam, Plastic, Aluminium
Size
1500*3000*1000 mm
Structure
Heavy Duty Wall Structure
Table
T-Slot with Clamps
Spindle
9kw/10kw/15kw
Tool Magazine
Disk Type/Linear Type, 8 Tools Ability
Inverter
Delta
Motor
Yaskawa Servo Motor
Control System
Osai or Syntec 5 Axis
X.Y Structure
Rack and Pinion, Linear Sqare Rail
Z Structure
Rack and Pinion, Ball Screw
Oil System
Automatic
Option
Rotary Device
Option 2
3D Scanner
Transport Package
Protected by Film and Fastened by Metal Wire
Specification
5 Axis CNC Router
Trademark
CHAODA
Origin
Shandong, China
HS Code
8465990000
Production Capacity
100 Sets / Month

Product Description

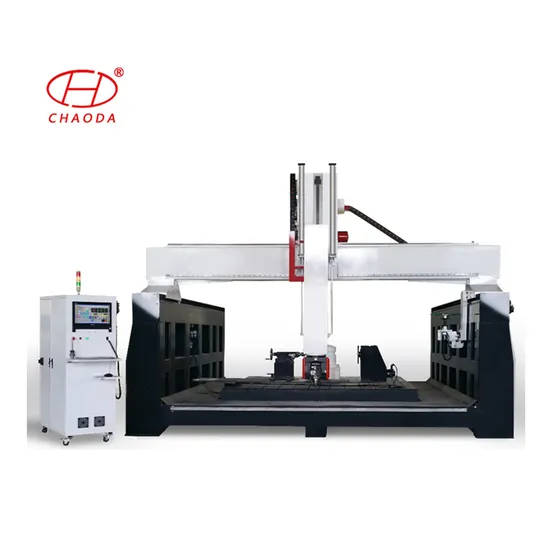

Factory Supply! 5 Axes CNC Router / 5 Axis Portal Milling Machine for Block Foam
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining. With a big rotary device, can process different kinds of 3d sculptures,statues,columns.
Model No. JC1530-5AXIS
X,Y,Z,A,C working size 1500*3000*1500mm* ±120°* ±245°
Whole structure heavy duty steel wall structure
Table surface T-slot with clamps (option: vacuum table)
Spindle 10KW ATC spindle, cooled by liquid
Tool magazine Disk type automatic tool changer, with 8pcs tool magazine
Driving system Japan YASKAWA servo motor and driver
Inverter Delta
Operating system 5 axis Syntec (option:OSAI)
Operation language G code
Working voltage AC380V, 3-phase, 50Hz
Running environment Temperature: 0ºC-45ºC; Relative humidity:30%-75%

It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate,
Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
