Basic Info.
Shotcrete Type
Dry, Wet, Semi-Dry
Machining Process
Hydraulic
Vibrating Amplitude
2.4mm
Color
Customized on Demand
Product Name
Concrete Pump Truck
Product Branding
Sinotruk
Wheelbase
1950+5725+1350mm
Air Conditioning
Equipped with
Body Size
Customized on Demand
Body Load
Customized on Demand
Pattern
Customized on Demand
Logo
Customized on Demand
Tire Specifications
Customized on Demand
Fuel Tank Volume
320-680L
Water Tank Volume
620-700L
Number of Boom Legs
Six Sections
Transport Package
Container Transport
Specification
13.804*2.55*4m
Production Capacity
500vehicle/Years
Product Description
Product Description

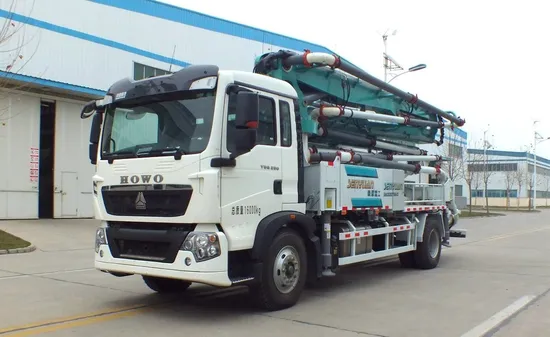

Sinotruk chassis concrete pump truck
This product is a high-end truck brand built by China National Heavy Duty Truck and foreign advanced automotive technology platforms. The chassis of the concrete pump truck adopts advanced manufacturing equipment, most of the accessories are the original suppliers of MAN company, and the product design, assembly process, production management, experimental verification and product release are completely adopted by German standards, and the quality is comparable to that of imported cars, which is a strong guarantee for the reliability of the vehicle. The chassis is highly malleable, provides a "plug and play" body interface, can be seamlessly connected with the body, and matches the MAN technology engine transmission (with cooler) + MAN technology rear axle, which provides ultra-reliable power for the body while meeting the requirements of the harsh working environment of the pump truck. Detailed Photos
* Large diameter, large displacement pumping system.
* The material absorption can reach more than 85%.
* Effectively reduce emissions and reverse, fragility and longer life.
* The pumping system adopts electronically controlled reversing, which is faster and has less impact on the system.
*The actual pumping efficiency is more than 5% higher than that of the traditional hydraulic control reversing system.
Product Parameters
Product name | Concrete pump truck |
Announcement model | ZLJ5440THBKF |
Pumping displacement | 180 m²/h |
Maximum pumping height | 63m |
Vehicle weight | 43.87 t |
Drive form | 4*4/6*4/8*4 |
Vehicle size | 13.804*2.55*4m and other |
wheelbase | 1950+5725+1350mm and other |
Maximum travel speed | 90km/h |
Engine model | SINOTRUK MC11.44-50 |
Maximum output power | 324kW |
Maximum horsepower | 440 hp |
Rated speed | 1900rpm |
Displacement | 10.518L |
Type of fuel | diesel fuel |
Pumping Displacement (Low/High Pressure) | 180 m²/h |
Number of Pumping Cycles (Low/High Pressure) | 26 times/min |
Conveyor cylinder: inner diameter × stroke | Φ260×2100mm |
Tire specifications | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20 |
Please note:
Different specifications of concrete pump trucks can be customized according to your needs, please contact us.
Company Profile
Visit the deal
Our Advantages
A: Our company has been selling trucks for 11 years, understanding customer usage scenarios, and being able to accurately match vehicles based on customer operational scenarios to maximize customer revenue.
B: Our company has a wide range of products, including micro trucks, light trucks, heavy trucks, dump trucks, and specialized vehicles, to meet customers' one-stop procurement needs.
C: We have a professional truck sales team that conducts thorough research on vehicle configuration and performance, and can provide customers with clear answers to any professional questions.
Packaging & Shipping
1. Container: fast sending, fast arrival, safe and economical.
2. Frame boat: suitable for two tractor heads, fast delivery time.
3. Bulk ship: cheap ocean cost, safe, time is a bit slow.
4. Ro-Ro ship: fast delivery time, safe goods, a bit high cost.
Fast sending, fast arrival, safe and economical
FAQ
Q1.What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 20 to 30 days after receiving your advance payment.
Q4.What is the warranty?
A:You can always enjoy technical support by phone or email. We will provide timely solutions.
Q5. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
>>
