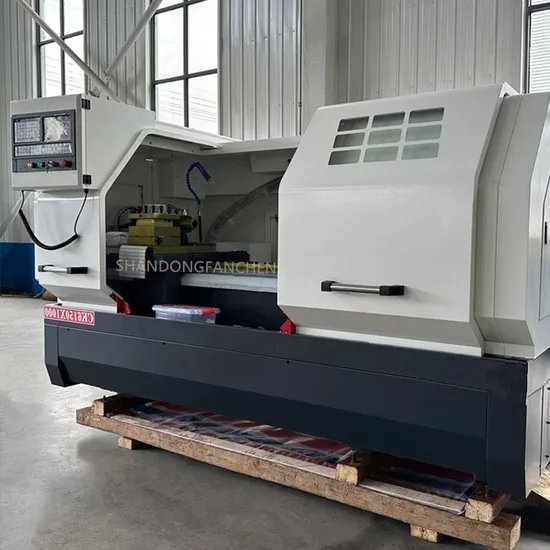

Ck6150 CNC Lathe Large Hydraulic Chuck Tailstock Metal Cutting CNC Machine Tool

US$8,900.00-19,980.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6150
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
500
Maximum Working Length
750/1000/1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ82
Width of Guide
400
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
20-2600
Tailstock Sleeve Stroke
150
Tool Dimension
25*25
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10

Packaging & Delivery

Package Size
3600.00cm * 3800.00cm * 3100.00cm
Package Gross Weight
2200.000kg

Product Description


Items unit CK6150
Swivel diameter on the bed mm Φ500
Maximum swing diameter on the slide
 mm Φ280
Processing length
 mm 1000//1500/2000/3000/4000
Spindle drive form Three speed endless shift
Spindle speed
 rpm 21-70
48-1600
100-350
Numerical control system Siemens840
Spindle end form and code
 A2-8/C8
Spindle through-hole inner diameter
 mm Φ82

Spindle motor power
 KW 7.5
Chuck size
 mm 250
Lead screw specification mm Φ40*8
X/Z feed motor torque NM 6/10
X/Z repeated positioning accuracy mm 0.01/0.015
Workpiece machining accuracy IT6-IT7
Workpiece surface roughness Ra1.6
Tail seat sleeve diameter mm Φ75
Tailstock sleeve stroke mm 150
Tailstock sleeve taper hole MT5
Tool rest form Electric four-station
Tool dimension mm 25*25
Width of guide mm 400

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
