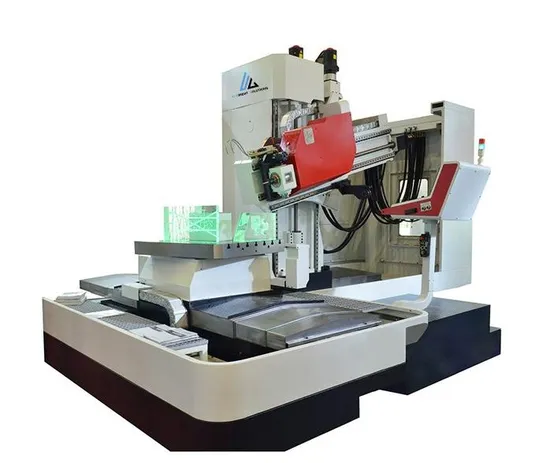

Advanced Six-Axis CNC Deep Hole Drilling Machine for Cylinders

Product Description

Six-axis CNC deep hole drilling machine with high precision, good quality and high efficiency
Local After-sales Service in India and Vietnam
CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
PRODUCT FEATURES:
1,FANUC 0i-MF CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2,FANUC servomotor for six coordinate axis and spindle:(good characteristics and perfect low speed performance.
3,With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
4,Remote control device is adopted in cooling system. Depending on the hole size, materials, chips and required precision, the flow rate and pressure can be adjusted and it could optimize the cooling result.
5,Precision detection: The dynamic inspection is done by British Renishaw laser interferometer. It makes compensation dynamically according to the test result, which ensures the positioning of the whole machine and re-positioning accurately.
6,R series is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency,low-cost,humanized technological process.



Parameter Specification

Items		R10-1210	R13-1613	R15-2515	R15-3017
Processing Capacity	Diameter of the Hole for Gun Drill	Ø3~30mm	Ø3 ~ 50 mm	Ø3~50mnn	Ø3~50mm
	Maximum Depth of the Hole for Gun Drill	1000 mm	1300 mm	1500 mm	1&00 mm
Processing Range	(X) Processing Range (from Left to Right) of the Working Table	1200 mm	1600 mm	2500 mm	3000 mm
	(Y)Processing Range of Sliding Table	1000 mm	1300 mm	1500 mm	1700 mm
	(Z) Processing Range of Column	500 mm	600 mm	800 mm	800 mm
	(A)The Rotary Angle of Ram	The Spindle Turns upward 15 degrees, and down to 25 degrees
Spindle	Taper Hole of Spindle	BT40	BT50
	Maximum Speed of Spindle	4500 rpm
Power	Spindle Motor	11 kw	15kw/18.5kw
	X Axis Servo Motor	27 N.m	36N.m	36 N.m	36 N .m
	Y Axis Servo Motor	27 N.m	36N.m	36 N.m	36 N.m
	Z Axis Servo Motor	27 N.m	36N.m	36 N.m	36 N.m
	W Axis Servo Motor	11 Mm	27 N.m	27 N.m	27 N.m
	A Axis Servo Motor	20 N.m	36N.m	36 N.m	36 N.m
	B Axis Servo Motor	20 N.m	36 N.m	36 N.m	36 N.m
	Total Power	45 kw	55 kw	55 kw	55 kw
CNC Index Table	Max. Loading Capacity	5 ton	5 ton	15 ton	20 ton
	Measurement	1000 x1000 mm	1200 x 1200 mm	1800 x 2000 mm	2200 x 2400 mm
Cooling System	Pressure Range of Cooling Liquid(Gun Drill)	2~15MPa (Set2~9MPa)
	Flux of Cooling Liquid (Gun drill)	6~85 L/min
Measurement& Weight	Floor Area of Machine Tool( Length* Width)	7500 x 5500 mm	8000 x6200 mm	9350 x 6500 mm	10050 x 7200 mm
	Maximum Height of Machine Tool	4200mm	5400mm	5600mm	5800mm
	Weight of Machine Tool	16ton	30 ton	30 ton	40 ton
System	CNC System	FANUC 0i-MF
Milling Function	Milling Range	1400mm 1900mm
