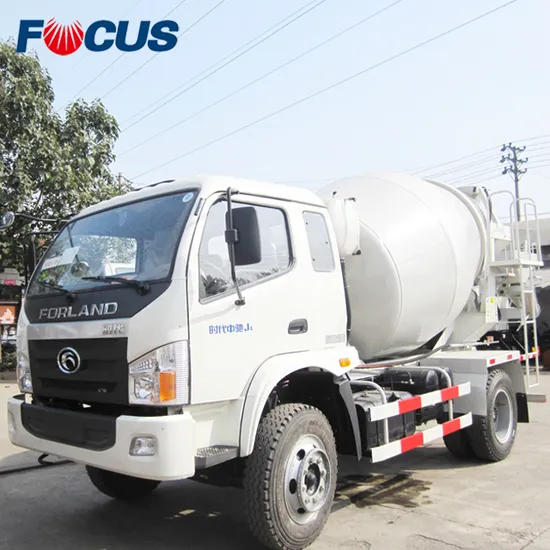

3cbm 4X2 Mini Transit Mixer with LHD or Rhd

Product Description

3cbm 4X2 Mini Transit Mixer with LHD or Rhd
Description of FOCUS 3cbm 4x2 mini transit mixer with LHD and RHD:
1. HOWO, FOTON, Dongfeng and other chassis are available in FOCUS small concrete transit mixer you can also use our drum tank on your Chassis.
2. Volume of mixer tank: 3/4/5/6cbm, Drive: 4X2
3. International famous brand hydraulic drive fits are adopted in our Concrete mixer truck;
4. Integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
5. Multi-points control system enables the concrete mixer truck operation to be easier, safer and more comfortable;
Main features of FOCUS mini transit mixer?
1. Pump, motor and reducer in FOCUS concrete mixer truck are all original imported America static pressure driving system with big driving torque and high efficiency.
2. Imported hose and connector are separately from Germany EMB and Italy MANULI.
3. Hose buckling device is totally from Germany HYDAC.
4. Stirring vat auto-welding improves FOCUS concrete mixer truck production efficiency and makes welding quality finer.
5. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.

Model		3m3	4m3	6m3
Tuck	Chassis	FOTON /HOWO	FOTON /HOWO	FOTON /HOWO
	Length(mm)	6765	7705	8715
	Width(mm)	2499	2500	2496
	Height(mm)	3420	3700	3850
	Weight(kg)	15990	18570	25000
	Load weight(kg)	7805	9860	11770
	Max.speed(kg/h)	80	80	90
Engine	Engine model	YC4D130-33	YC6J190-33	WD615.69
Working device	Drum volume(m³)	5.05	6.15	8.7
	Mixing volume(m³)	3	4	6
	Drum rotation(r/min)	0-12	0-12	0-12
	Discharge speed(m³/min)	≥3	≥3	≥3
	Surplus rate(%)	<0.5	<0.5	<0.5
	Water tank vol.(L)	400	400	400

---
