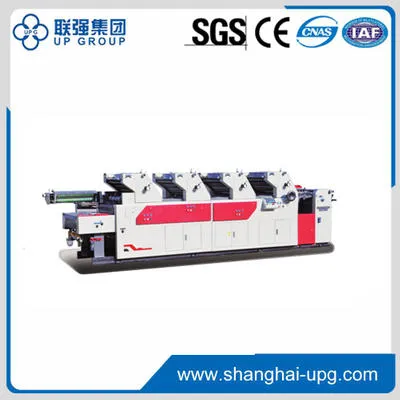

LQ-CF47/56/62-4/NP 4 Color Offset Printing Machine

Product Description

Model	LQ-Cf62II-4/NP	LQ-Cf56II-4/NP	LQ-Cf47II-4/NP
Max printing area	605*440	544*380	454*345
Max paper size	620*450	560*390	470*365
Min paper size	260*180	200*148	90*140
Paper type	17g-250gsm
Number of ink rollers	14 PIECES(3 FORM ROLLERS)
Number of water rollers	4 PIECES(2 FORM ROLLERS)
Register mechanism	ROLLER TYPE SIDE GUIDE
Printing speed	2000-7000 SHEET/HOUR
WEIGHT	1000KG/1200KG	900KG/1100KG	800KG/1000KG
Motor Power	1.5kw main motor, pump motor 0.55kw
Voltage	220V/50HZ(220V/60HZ OPTIONAL)

Feature
Printing is needed everywhere and involved in every industry. The request for the colorful production in increasing. However ,the colorful printing for thin paper and small quantity can not be finished by big and multicolor press,therefore,according to market demand. We develop this new small unit type offset press
1. Two printing units closely arranged,there is enough space for operation
2 It adopts the transfer feeder type same as heavy-duty,with small errors and ensure the overprint precision
3 It could do printing for thin paper,thick paper,self-adhesive paper and color printing with precise guide and small deformation
4 It adopts the automatic ink and pressure device
5 It use Plc controllers and photo detectors from Japan
6 It has automatic oil supply system
7 There is also optional numbering system
Company Profile
Superiority
Our Customers
Exhibitions
Our Services Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.

---
