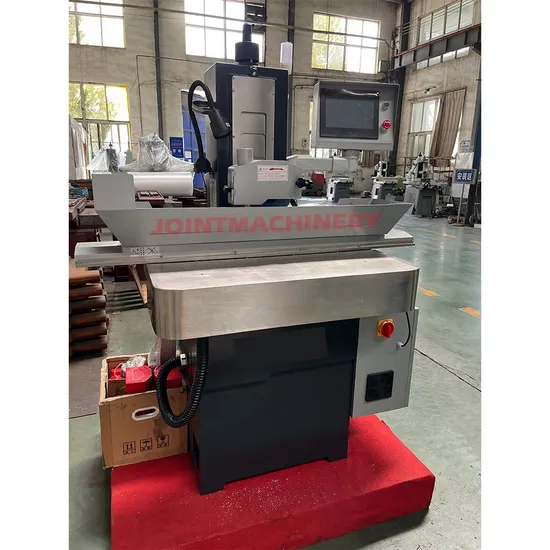

Factory Direct Sale Good Quality Surface Grinder Manual Grinding Machine 818m

Product Description

1.Highly Rigid Structure
The base column structure of this machine has high strength, high structure, and high stability. The main castings are made of high-strength and wear-resistant cast iron. After multiple aging treatments, the stress inside the machine is completely eliminated. The guide rails are highly wear-resistant, ensuring high precision and long life.
2.High Quality Grinding Head
This machine uses a high-precision spindle system originally supplied by a Taiwanese manufacturer and enjoys a high reputation in the world. The spindle uses P4-level ultra-precision bearings, with the taper end deflection within 2µm; it uses a V-3-level low-vibration motor. The whole machine rotates at high speed with low noise, no vibration, and has a large load-bearing capacity. It is suitable for heavy cutting and various molding grinding.
3.High-Precision Feed Structure
The front and rear left and right slides of this machine are pasted with high-grade imported guide rail wear-resistant sheets TUR CITE-B, and are precision scraped to ensure high precision. The column and spindle head guide rail are matched with high precision, and are most suitable for precision forming grinding of various grooves.
4.Automatic Lubrication System
When the spindle is started, the lubrication pump starts to automatically lubricate all screws and sliding surfaces, reducing wear and extending working accuracy and life.
5.Safe Dust Protection System
Dust-proof parts are installed between each moving part: sheet labyrinth rubber guards ensure the safety of the guide rails and the interior is dust-free and water-free.

1. Grinding Head
Manual grinding head,equipped with a rapid lifting mechanism, using a built-in motor, the spindle has good rigidity and high precision.
2. Electromagnetic Chuck
It is simple to operate,saves time and can be used continuously for more than 20 hours
3. Metal Hand Wheel
High-precision metal feed handwheel, easy to control.High-precision grinding model with an accuracy of 0.002MM.
4. Double V Guide Rail
Double V guide rail is adopted longitudinally, single V flat guide rail is adopted laterally, Hydraulic drive, high precision.
5.Resin Sand Cast Iron Body
The castings have good stability, high strength, and artificial aging treatment to ensure the dimensional accuracy of the castings finishing.
Factory Direct Sale Good Quality Surface Grinder Manual Grinding Machine 818M

Model			618M
Table size		mm	460*200
X axis travel		mm	510
Y axis travel		mm	210
Table side way			Slide way
Max distance from spindle center to working table		mm	400
Auto crossward feed			-
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Auto vertical feed			-
Vertical rapid moving feed			-
Vertical feed of hand wheel		1 Rev	1
		1 Div	0.005
Rotation speed	50HZ	rpm	2800
	60HZ	rpm	3360
Grinding wheel size			Φ200×(3-13)×31.75
Spindle motor			2*2
Hydraulic motor			-
Crossward driven motor			-
Vertical driven motor			-
Coolant pump motor			0.12*2
Dust-clean motor			0.75*2
Dimension (L*W*H)		mm	1500*1220*2090
Net weight		kg	900

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
