Product Details
Product Description
Product Description

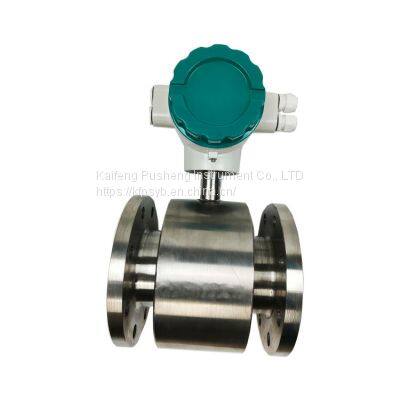

Electromagnetic flowmeter is a flowmeter that measures flow according to Faraday's law of electromagnetic induction. The advantages of electromagnetic flowmeters are minimal pressure loss and a wide range of measurable flow rates. The ratio of the maximum flow to the minimum flow is usually greater than 20:1. The applicable industrial pipe has a wide diameter, up to 3 meters. The output signal has a linear relationship with the measured flow rate, with high accuracy. The conductivity can be measured ≥5μs/cm. The fluid flow of acids, alkalis, salt solutions, water, sewage, corrosive liquids, and mud, pulp, paper pulp, etc.
Nominal diameter DN(mm)
| PTFE lining 15/20/25/32/40/50/65/80 /100/125/150/200/250/300/350/400/450/500/600/700/800/900/1000
|
|
rubber lining: 65/80/100/125/150/200/250/300/350
|
|
Flow direction
| Positive, negative, net flow; turndown ratio: 150:1; repeatability error: 0.1% of the measured value
|
Accuracy class
| Pipeline type: 0.5 grade, 1.0 grade
|
Measured medium temperature
| Ordinary rubber lining: -20-+60°C;
|
High temperature rubber lining: -20-+90°C
|
PTFE lining: 20-+120°C;
|
High temperature type PTFE lining: 20-+180°C
|
Rated working pressure pipeline type
| DN10-DN80: ≤1.6MPa, DN100-DN250: ≤1 MPa,
|
DN300-DN 1200: ≤0.6MPa high pressure can be customized
|
Flow measurement range
| The flow measurement range corresponds to the flow velocity range of 0.1-15m/s
|
Conductivity range
| The conductivity of the measured fluid is ≥5us/cm (-body type). Most of the water-based media have a conductivity in the range of
200~800 us/cm. Electromagnetic flowmeters can be used to measure their flowmeters.
|
Current output
| Load resistance: 0-10mA, 0-1.5kQ; 4-20mA, 0-750kQ,
|
Digital frequency output
| The upper limit of the output frequency can be set within 1-5000 HZ. The open-collector bidirectional output of the transistor
with photoelectric isolation; the maximum collector current is 250 mA when the external power supply is less than or equal to 35V.
|
Power supply
| 85-265 V, 45-63 HZ
|
Length of straight pipe
| Pipeline type: upstream≥5DN, downstream≥2DN
|
Connection method
| Flange connection is adopted between the flowmeter and the piping, and the size of the flange connection should meet the
requirements of GB 11988.
|
Ambient temperature and humidity
| -25°C~60°C; 59%-95%
|
Total power consumption
| Less than 20W
|
Kaifeng PuSheng instrument co., LTD., mainly producing all kinds of rotor meter, the level of spiral meter, vertical spiral water meter, water meter, prepaid intelligent water meter, IC card intelligent water meter, bluetooth intelligent water meter, nb intelligent water meter intelligent water meter and valve control meter, such as photoelectric read-only meter, ultrasonic heat meter, ultrasonic water meter, electromagnetic flowmeter, the throttle device, the vortex street flowmeter, Turbine flowmeter, and related software and hardware development, the company has intelligent circuit board and software research and development capabilities, through the ISO9000 certification system is a collection of research and development, production, sales, after-sales service, technical training as one of the high-tech production and development enterprises.
With decades of experience in the production and service of water meters, electricity meters and other meters and calibration devices, we have the best quality control experts and scientific research and production team in China. Company measurement experts get the measurers through certificate issued by the state in 1982, the quality control experts in 1968 (the original 983 factory), now known as artisans power of the luoyang bearing factory equipment factory work, presided over many products to participate in the national competition for weighing apparatus in China the national front row, computer industry core expert team with 20 years of experience, double card master, And scientific research institutes, universities, as well as a number of master's doctor cooperation to set up a RESEARCH and development service team, with various aspects of the system of research and development and production capacity, flow meter by decades of experience in the flow meter technical experts carefully built supervision. We service clients with unit of former five machine department, Beijing, Shanghai, ningbo and other places, shanxi, shandong, hebei, etc all kinds of users throughout the country, dozens of tap water company, we have training of luoyang, zhengzhou city tap water company check personnel, we have decades of instrument technical service and technical support capabilities.
FAQ
1 What product quality your factory offer? we offer most competitive prices with best quality.
2 we want to know monthly capacity?
10000sets/month .
3 what kind of certificate you have?
Our company already achieve ISO.
4 What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.
5 Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
>>
