US$22,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Maximum Digging Reach
6350mm
Transport Package
Nude Packing
Specification
5500*2100*2650mm
Production Capacity
3000units/ Year
Product Description

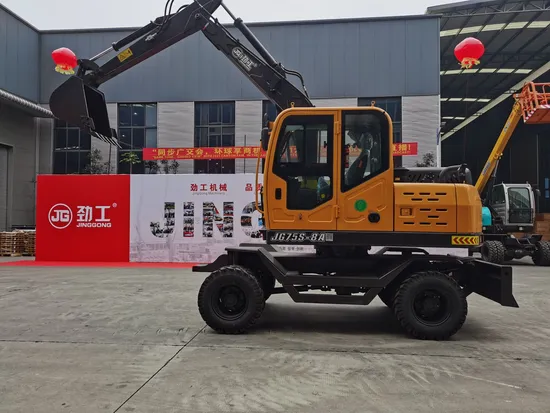

Mini Excavator Wheel Excavator Construction Machinery
It is a mechanical construction product that lives in the railway department about iron sand, iron ore, coal mines, grain and other loose materials.
After being loaded on the train skin, it must meet the safety requirements of "leveling of cargo". It is a technological product that achieves the replacement of 8 laborers' leveling speed in the same time and realizes mechanized and fast operation.
| SPECIFICATIONS |
| RANGE OF OPERATION | Boom length | 3300mm |
| Arm length | 1850mm |
| Maximum Digging Reach | 6400mm |
| Maximum Digging Depth | 3300mm |
| Maximum Digging Force | 45KN |
| Maximum Digging Height | 6870mm |
| Maximum Dumping Height | 4860mm |
| Back-end radius of gyration | 1820mm |
| DIMENSION | (Length*width*height) travel position | 5800*2100*2850mm |
| Wheel base | 2400mm |
| Track(Front/rear) | 1660mm/1580mm |
| Ground clearance of counterweight | 1060mm |
| Min ground clearance | 285mm |
| TECHNICAL PARAMETERS | Angle of rotation | 360° |
| Machine weight | 6000kg |
| Engine model | YN36GB2/4102 |
| Rated Power | 58.8KW |
| Rated Speed | 2200r/min |
| Hydraulic system working pressure | 20Mpa |
| Hydraulic system flow | 110L/min |
| Metering gear pump | 2*25ml/r |
| Max Hauling force | 45KN |
| Walking speed | 25km/h |
| Grade Climbing ability | 58%/30° |
| Tyre model | 750.16 |
| Volume Of Bucket | 0.2-0.3m3 |
| Revolution Overdrive Pressure | 16Mpa |
| Full circle swinging time | 5.5s |
| Fqt Fuel Quantity | ≥4L/h |
| Capacity Of The Fuel Tank | 110L |
| Hydraulic Tank Capacity | 110L |
>>
