High Cost Performance Agricultural Machinery Hay Rake for Grass Russia

Product Description

Yucheng Hongri Machinery Factory
Product Technical Parameter
Product description:
Name: Agricultural Equipment 9LZ Hay Rake
Finger plate machine series, suitable for hanging in the three wheeled tractor suspension device, working parts with tine refers to disc machine on the disk, sequ entially to a finger, until the formation of loose ventilation grass strip. Change refers to disc to adjust the angle of SWATH width. Tooth for tooth comb grass of spring steel, the effect is good, copying performance is strong, tooth form a radial configuration on the hub, which can eliminate the wind effect, convenient dus t by. Finger pressure on the ground by a tension spring control, according to crop and ground conditions, adjust the pressure by stretching the adjustment plate. Transport can be a wheel to the rear part of the tractor. The machine has the advantages of simple structure, convenient operation, reliable operation, less failure, high efficiency, good operation quality. Simple maintenance, power good matching performance. And not only can rake, and can carry out the tedding operatio n (can be integrated a grass strip around to spread out). This machine and the machine supporting the use of my factory production, the cutting width is formed of three grass strip around into a homogeneous grass strip, facilitate the subsequent bundling operation.

Model	Unit	9LZ-3.0	9LZ-4.0	9LZ-4.8
working width	mm	3000	4000	4800
weight	kg	260	380	450
matched power	hp	20	30	40
No.of wheel	pcs	4	6	8
swath width	mm	800-1500
overall width in transport position	mm	3200
overall height in transport position	mm	2300	3000	3800
working speed	Km/h	5-15	10-15	10-15
productivity	Hm²/h	1-3	2-5	4-6

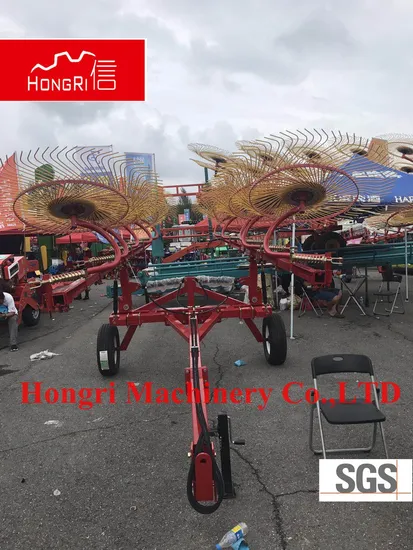

Product Images:

Packing & shipping: Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers
Our Company :

Business type	Manufacture
Location	Shiliwang Industrial Zone of Yucheng, Shandong,China
Year Established	2003
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ: Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
Q: Business terms
A: Shipment time: 25-40 days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
Q: Why choose Hongri for cooperation?
A: Comparing with our competitors, we have much more advantages as follows: 1. More than 30 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "Hongri" brand and "CE" ceitification.
11. Lower repair rate and bad review rate.
12. We have American Branch to show our main products. We can give customers best service.
If you have any questions, please feel free to contact me.

---
