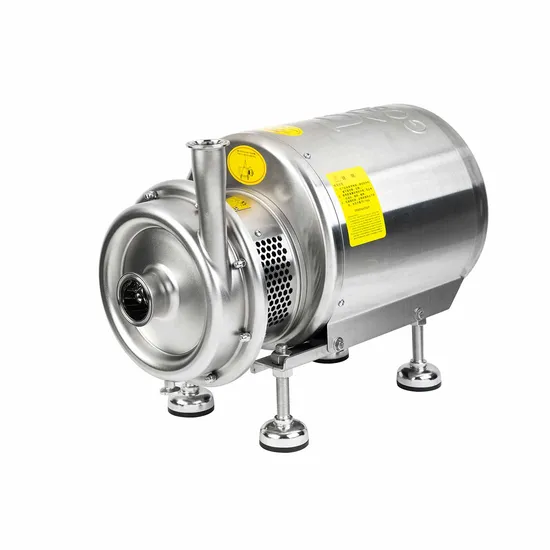

2.2kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor

Product Description

Stainless steel sanitary centrifugal pump uses 304 or 316L material and mirror polishing process, is widely used in food, dairy, pharmaceutical and other industries. The GKH series centrifugal pumps are used to transport low density liquids such as water, milk, low viscosity potion. It is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made of stainless seal, silicon carbide or tungsten alloy. And the dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. According to customer demand, it can also be equipped with the double end mechanical seal.
Specification:

Model in Our Company	GKH sanitary centrifugal pump
Motor Power	0.37KW~37KW
Rated Flow	1~150T/H (16~2500L/min)
Rated Head	15~55m
Working Temperature	-10ºC~140ºC
Inlet Diameter	Φ32~Φ102 (mm)
Outlet Diameter	Φ25~Φ102 (mm)
Voltage	AC220~240V, AC380~420V, 50/60Hz custom
Motor	ABB/Chinese Motor
Connection	ISO ferrule joint, threaded union, flange
Inner Surface	Mirror polishing Ra0.4
Material	AISI 304, AISI 316L
Delivery Time	About 7-15 days after deposit

Feature: Low noise and no dead ends.
Ra0.4 high smooth finish.
Adjustable Angle pipe
Pure stainless steel design.
Flushed single or double mechanical seal.
With stainless steel base plate & adjustable feet.
Different drives and devices:
1) Manual adjustment, continuously variable transmission.
2) Variable - frequency motor adjustment.
3) Fixed speed output transmission.
Adjust the impeller face angle before screwing in.
GKH sanitary centrifugal pump selection table(support customization)

---
