Modern Automatic Poultry Equipment for Layer Chickens

Product Description

Modern Automatic Poultry Equipment for Layer Chickens


Product Description
1. Automatic Main Feeding System
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatically to release automatic delivery.

Consists	Item Name	Specifications	Remarks
Silo (or Big feed hopper), Dive system, Sensor, Main feeding line pipe, Auger.	Feed silo	8t/10t/14t/16t/22t/28t	1. Silo foundation and the embedded parts should be borne by the buyer; 2. Feed silo adopts galvanized steel belt or fiber reinforced plastic, which is customized by the customer's demand;
	Big feed hopper	600kg/800kg
	Drive system	Top quality motor, 0.75/1.1kW
	Sensor	World top class products
	Main feeding line pipe	World top class products
	Auger	World top class products

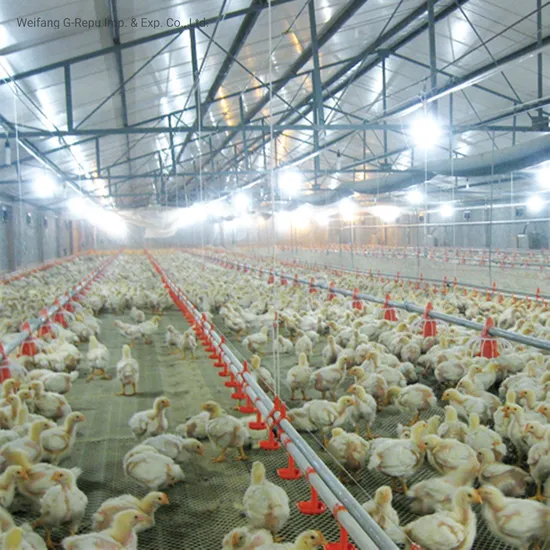

2. Automatic Pan Feeding System
This system deliver feed automatically through motor under the control of feed sensor, which ensure birds feeding during whole growing period.

Consists	Item Name	Specifications	Remarks
Sub feed bin(with accessories), drive system, sensor, four holes hot galvanized pipe, feed pan, winch handle, manual lifter winch, auger	Sub feed bin (with accessories)	70/90kg	1. Special purpose high quality drive motor; 2. World advanced concept designed feeding pan;
	Drive system	Top quality motor, 0.75/1.1kW
	Sensor	World top class products
	Four holes hot galvanized pipe	3m/set
	Feed pan	With feed limit leaf
	Winch handle	GR products
	Manual lifter winch	GR products
	Auger	World top class products

3. Nipple Drinking System
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

Consists	Item Name	Specifications	Remarks
Water line front parts, doser, drinking system main inflow pipe, pressure regulator connecting hose, middle pressure regulator parts, nipples drinking line, lifter winch, winch handle, drinking line hanging parts	Water line front parts	Pure material good quality pipe	1. Pure raw materials drinking water pipe. 2. Pressure regulator (Double barreled with large flow capacity). 3. Nipples use good quality engineering plastic for outer, for the inner, we use good quality stainless steel. All nipples are anti-rusting, service life over 10 years. Double-sealing structure.
	Doser(with accessories)	World top class products
	Dosing pump(with accessories)	World top class products
	Dosing bucket	100kg
	Drinking system main inflow pipe	Pure material good quality pipe
	Pressure regulator connecting hose	Pure material good quality products
	Middle pressure regulator parts	World top class products
	Nipples drinking line	12nipples/3m, 15nipples/3m, 16nipples/4m
	Lifter winch	GR1500
	Winch handle	GR550
	Drinking line hanging parts	Reliable and long service life

Nipple capacity ability
1	Broiler	8-12 / nipples
2	Reserve Layer	12 / nipples
3	Reserve turkey	20 / nipples
4	Duck	10 / nipples
5	Breeder	10 / nipples

Water display level tube
Days or chicken	1-7 days	8-14 days	Up 15 days
Water level height (mm)	50-80	80-200	200-350

4. Automatic Ventilation System
This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window.

Consists	Item Name	Specifications	Remarks
50" fan, 36" fan, frequency converter, air inlet, air inlet motor, manual winch, right and left cart with accessories	50" fan	Top quality motor, 220/380V	1. Special production process to ensure the smooth running of low noise and no vibration; 2. Japan imported belt, to ensure long-term use without deformation; 3. Air inlet adopts reasonable design mechanism, easy to open, good seal and heat preservation performance.
	36" fan	Top quality motor, 220/380V
	Frequency converter	3kW
	Air inlet	Three direction
	Air inlet motor	Reliable and long service life
	Manual winch	H-1500-B
	Right and left cart with accessories	Reliable and long service life

5. Environment Control System
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

Consists	Item Name	Specifications	Remarks
Environmental controller, environmental sensor, humidity sensor, negative pressure gauge, power box, watt-hour meter box, light regulator, main control box(with alarm), sub control box, UPS power supply group(regulator control box use), lighting system(bulb not included), wires and fixtures	Environmental controller	Temptron607/610/616, AC-2000 PLUS, Rotem Platinum PLUS	1. Main parts all adopts world class products to ensure the reliability; 2. Controller includes three series of T607, T610 and T616 imported from Israel Agrologic and MRS6616 developed and produced by ourselves. 3. Control box made by a national standard box body, and power controls are CHNT. 4. Environment controller is designed to control poultry breeding equipment automatically and intelligently according to local climate and equipment requirements
	Environmental sensor	World top class products
	Humidity sensor	World top class products
	Negative pressure gauge	World top class products
	Power box	Reliable and long service life
	Watt-hour meter box	Reliable and long service life
	Light regulator	60A
	Main control box(with alarm)	Reliable and long service life
	Sub control box	Reliable and long service life
	UPS power supply group(regulator control box use)	With battery and charger
	Lighting system( light bulb not included)	For poultry house
	Wires and fixtures	For poultry house

6. Cooling Pad System
Cooling pad surface coated with special material, which can ensure the cooling pad surface no moss, and inhibit the growth of bacteria; The top set with dredge water cooling pad, to make sure uniform water spread.

Consists	Item Name	Specifications	Remarks
Cooling pad (aluminum alloy frame), protective curtain cloth, curtain system(include motor), circulating water system, filter, pump	Cooling pad (aluminum alloy frame)	1.5m*0.15m*0.6m, 1.8m*0.15m*0.6m(without frame); 1.66m*0.15m*0.6m, 1.96m*0.15m*0.6m(with frame)	1. Cooling pad paper adopts the Finland import pulp, breeding special purpose corrugated angle, 2-3 times cooling effect of the ordinary cooling pad; 2. Cooling pad glue uses Taiwan brand product, strong adhesion strength, ensure the cooling pad's hardness and toughness, durable; 3. The frame adopts aluminum alloy material, anti rust.
	Protective curtain cloth	Reliable and long service life
	Curtain system(include motor)	Reliable and long service life
	Circulating water system	Reliable and long service life
	Filter	Taiwan brand product, reliable and long service life
	Pump	0.55/0.75kW, anti block pump

Advantages
1. Hygroscopicity: Though with the special craft processing crossing linking technology, corrugated paper has high absorbablity, high water resistant, anti-midew and long service life.
2. Dry solution: When water stop flowing on the cooling pad surface, the protective coating will dry quickly, so it could prevent parasitic microbes survive on the surface, thus inhibiting the algae and other organic matter from breeding in the surface
3. Non-porous surfaces: Prevent the algae and mineral substance from residing in the deep, and drying off the surface.

7. Automatic Spraying System
This system effectively cools, humidifies, deducts and disinfects the henhouse(the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Consists	Item Name	Specifications	Remarks
3/8'' copper tube, nylon tube, double opening spaying sitting, copper spaying nozzle, copper T-connection part, ball valve, valve connection, direct connection, L-shaped connection, mobile main spaying machine, high pressure hose, high pressure slow shock tube, filter		Tube thickness: 1mm	1. The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute; 2. Nylon tupe adopts the import products, pressurebearing capacity is 30-90kg, corrosion resistance; 3. Pipeline and spraying sitting 's pressure bearing capacity is 100kg; 4. Filtration system using honeycomb filter, 400 hole filtering mesh.
	Nylon tube	Tube thickness: 2.7mm
	Double opening spaying sitting	Copper
	Copper spaying nozzle	3/8'', 25-30mm
	Copper T-connection part	3/8''
	Ball valve	3/8''
	Valve connection	3/8''
	Direct connection	Copper
	L-shaped connection	Copper
	Mobile main spaying machine	3.7kw
	High pressure hose	Reliable and long service life
	High pressure slow shock tube	Reliable and long service life
	Filter	Reliable and long service life

8. Curtain System
Curtain system is used for the open structure poultry house with no side wall, which is mainly used in the area which has high temperature weather all the year round.

Consists	Item Name	Specifications	Remarks
Curtain cloth, Curtain drive system	Curtain cloth	Reliable and long service life	1. The drive system is optional, 2. can use motor drive system or manual drive system, customized per the customer's demand.
	Curtain drive system	Reliable and long service life

9. Automatic Heating System
In cold weather, poultry heating system is widely used for heating the poultry house, which has good performance and can save the heating cost.

Consists	Item Name	Specifications	Remarks
Hot blast stove with accessories	Hot blast heater	Reliable and long service life	1. Can be equipped with heating duct;
Oil/gas fired heater with accessories	Oil/gas fired heater	30kW/50kW	1. Automatic temperature control;
Waste oil heater	Waste oil heater	8-10L/hour	Top quality, save cost

---
