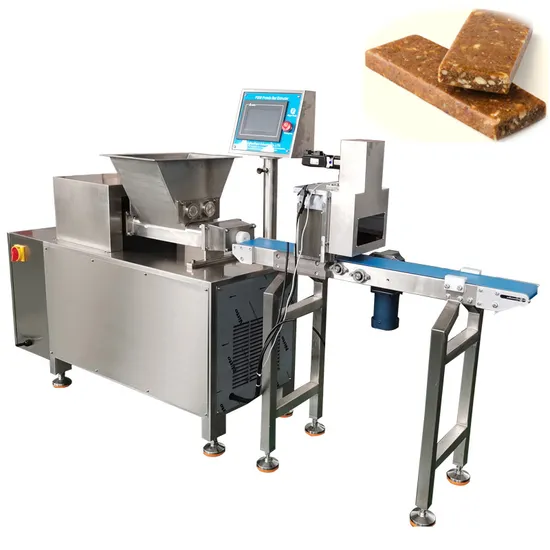

P308 Powerful Protein Bar Extruder Energy Bar Making Machine

Product Description

Description :


PAPA food machine offers customizable extruders designed for the manufacture of health food bars, confections, dough or any product extrudable in ropes. Extruder configurations include double rolling screws to guarantee the dough extruded successfully to the rectifier, and a extra roller on top of hopper rolling down the mixture to guarantee no mixture come out. the horizontal design guarantees the perfect bar shape, the rectifer gurantees the uniform same size and weight of bar.
Papa machine has an in-house lab for testing the extrudability of products. Customers can even utilize our facility remotely. Simply send us your ingredients for testing and we'll provide video footage of the results.

Papa P308 model energy dates bar making machine is mainly designed for hard , dry and big particel materials bars, the motor that we use is 380V, three phase motor,which can produce very strong torque. All the metal parts,including the exrusion screw adopt to the full 304 stainless steel,which can handle the very hard and dry ingredients. Actually the strong P308 Protein bar extruder machine that we produce has fixed the problem that the hard mixture or dough can't be extrudering out,customers can use this machine to make almost all the various bars and cookies like protein bar, date bar, energy bar, fruit bar, chocolate bar, vegan bar, nutrition bar, praline bar, crackers, fish crackers, halava, allergie free bar and other food bars no matter the mixture or dough is hard or soft.



Specification for protein bar extruder :

Model	P308
Output/capacity	40-80pcs/min
Product weight	10-250g
Power	4 kw
Voltage	220V single phase/380V three phase
Dimension	2550*760*1400mm
Weight	250kg
Material	304 stainless
Mould material	PU
Conveyor	PE

protein bar /energy bar / nutrition bar :

If you wanna making chocolate protein bar , we have PE8 chocolate enrober and 3.2m cooling tunnel for your choice . The cooling tunnel has strong 3P power refrigerating unit to reach minimum minus 20 ºC temperature. Except for cooling chocolate, customer can connect the cooling tunnel right after the protein bar machine for making sticky bars without chocolate coating. 180 ° Turning conveyor is used to connect the cooling tunnel and flow wrapping line for saving space. Customer can take it out as long as he has enough space for the protien bar production line. Besides, we can customize the turning conveyor to different radian ( such as 90 °)to meet customer's factory layout.

P308 protein bar extruder with cutter work with flow wrapping machine /packing machine


PA250 Flow wrapping machine has automatic sensor to sort and count the bars in order before entering the flow wrapping machine, and the film downside wrapping type can perfectly protect the bars from broken or deformed, especially for protecting fragile and sticky bars.


High productivity Multirow protein bar extruding and cutting machine PAPA machine
The multi-row protein bar extrusion production line adopts touch screen PLC automatic control, and the Delta brand has high configuration and stable work,the multi-row fruit bar extruder machine can change different skin thickness, length, bar size by installing different molds to make bar products of different sizes. The six lines energy bar extruder machine is avaibale to make protein bar, date bar, fruit bar, energy bar, power bar, nutrition bar, coconut bar, cookies and so on.
This multirow protein bar machine can connect with big chocolate coating machine PE400 Big chocolate coating machine type .

The chocolate enrobing dipping coating machine enrober for donut consists of chocolate enrober machine and chocolate cooling tunnel. The belt width of large scale chocolate dipping machine that we have is 400mm,600mm,900mm and 1200mm,etc.Customers can choose different belt size according to his personal requirement.

The large scale industrial chocolate coating line normally is connected to the food forming machine, such as protein bar production line, granola bar production line, cookie production, biscuit production, bread production line and so on. So as to which model of the chocolate coating line to choose is depending on the food forming machine belt size. The height of our chocolate coating line can be customized per the request of the customer. Customer can use the chocolate coating line only if he doesn't have the food making machine, then he need to take the food to the chocolate enrobing line by hand or by a extra conveyor.

---
